HDMI Splitter is a product that can distribute lossless HDMI signal to one or more high-definition display devices such as HDTV. It can optimize your home theater system to the best.
HDMI signal is distributed from source device such as DVD, satellite receiver, set-top box, DV camera, A/V receiver and other HDMI compatible device to high definition display device such as HDTV and HDMI flat panel display.
Features :
1. Fully compatible with HDMI 1.4 specification. It applies to high-definition source devices and display devices such as DVDs and HDTVs that have HDMI ports or digital ports and comply with HDCP protocol.
2. Support high resolutions up to 480i/p,576i/p,720i/p,1080i/p and 4Kx2K@25/30Hz.
3. Support 30/36 dark, support wide color space, including: SYCC601、Adobe RGB、AdobeYCC601 RGB、AdobeYCC601
4. 24/50/60fs Blu-ray DVD/HD-DVD/xvYCC.
5. DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD audio formats.
6. Increase the transmission distance and improve the transmission signal.
7. Compatible with DVI by using HDMI to DVI adapter.
8. Plug-and-play.
9. Metal housing and overall shielding without signal interference.
10. Led indicates signal and power mode.
11. Power supply (see technical parameters).
12. 3D Support
Specifications:
HDMI Source Input Port -------------------------------------------------------------------------------------1
Display Device Output Port-----------------------------------------------------------------------------16
Source Port Connector ---------------------------------------------------------------------19 PIN HDMI
Display Device Port Connector 19-pin HDMI connector
HDCP Compliance ---------------------------------------------------------------------------------------- YES
Single Link Range------------------------------------------------------------------------------------------------3840x2160
Input video signal ---------------------------------------------------------------------------- 0.5-1.0 volts PP
Input Signal DDC Signal--------------------------------------------------------------------------------------5 Volts PP(TTL)
Deep Color----------------------------------------------------------------------------------------------48 Bit
HDMI version----------------------------------------------------------------------------------HDMI1.4
Bandwidth--------------------------------------------------------------------------------------- Up to 340Mhz
Signal speed--------------------------------------------------------------------------------------------------------------- Up to 10.2Gbps
Input cable length ---------------------------------------------------PS4≤15M；BLUE DVD≤15M
The length of output cable ---------------------------------------------------------------------------------------------≤25M
Cable standard --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 26AWG HDMI1.4
Vertical frequency range ------------------------------------------------------------------------------60Hz
Power consumption (max.) -----------------------------------------------------------------------------17.5Watts
Operation Temperature----------------------------------------------------------------------------------------------------------------------------------------------0℃-70℃
Operating voltage------------------------------------------------------------------------------------------------DC 5V
Power adapter-------------------------------------------------------------------------------------------V 2.5A
Net weight----------------------------------------------------------------------------------------------------2.0Kg
Dimension: L*W*H(mm)-------------------------------------------------------------------------432x130x44.5

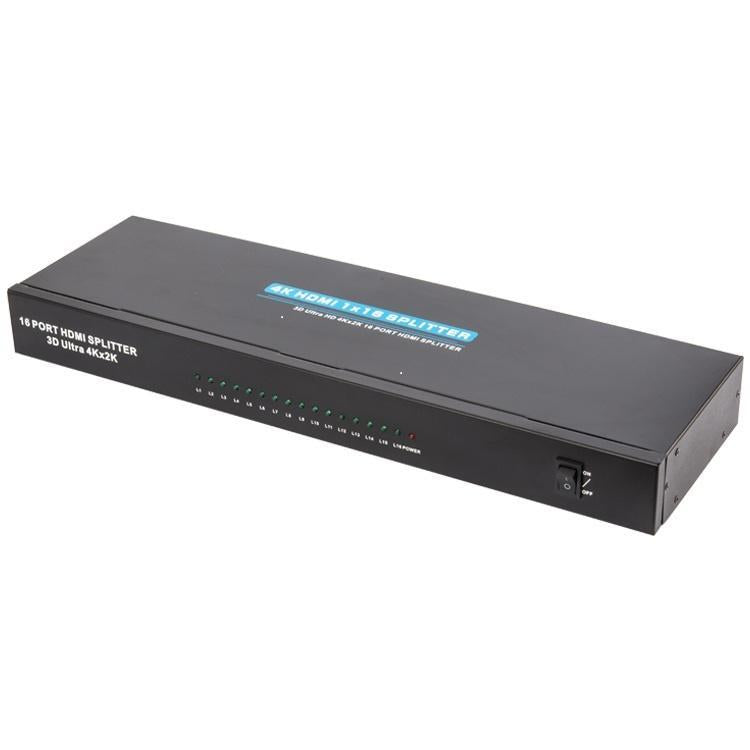

Panel Introduction
(1) Power input port
(2) 1-16HDMI output ports
(3)HDMI INPUT port
(4)1-16 HDMI output indicator
(5) Power indicator
(6) Power switch
Connection diagram
6.01 Connect the HDMI cable between the signal source and the input port of the Splitter.
6.02 Connect the HDMI cable between the Splitter output port and the HDTV.
6.03 Connect the splitter and power adapter.
6.04 Open the signal source and power of HDTV, then it works.
Explanation: With different brands of input or output device, the length of the input or output
The connecting cables will also be different.
Packing list:
1. HDMI Splitter 1×16 --------------------------------------------------------------------1 Pcs
2. 5V DC Power Adapter ------------------------------------------------------------1 Pcs
3. User Manual-----------------------------------------------------------------------1 Pcs
