The Single HDMI over Cat5e/6 Extender with Bi-Directional IR extends high definition video and audio signals and IR, up to 180ft/60m over a single Cat5e/6 cable. Features EDID management, which enables and encourages “handshake” of source and display for seamless integration. With a single cost-effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender. In addition, the extender is also equipped with bi-directional IR pass-through that allows for source or display control.

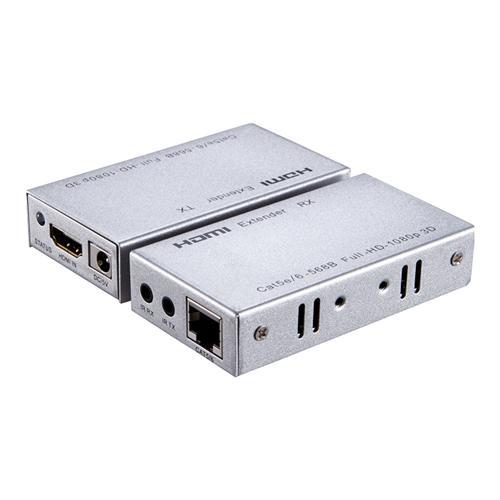

The extender consists of two units: the transmitter unit and the receiver unit. The transmitter unit is used to capture the HDMI input with IR signals and routes the signals through a cost-effective Cat5e/6 cable. The receiver unit is responsible for equalizing the transmitted HDMI signal and reconstructing the IR and serial control signals. The extender provides the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Features:
. Allows HDMI audio/video and IR signals to be transmitted over a single Cat5e/6 cable

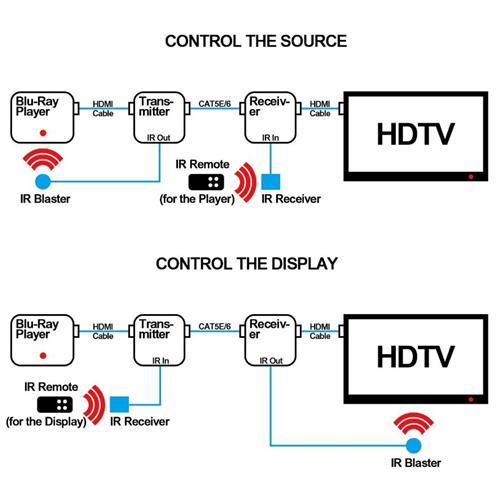

. Bi-directional IR system allowing source or display control (IR accessories included)
. 2D / 3D EDID Management
. Transmission Range: Extends 1080p resolution up to 180ft/60m over a single Cat5e or Cat6 cable
. Works with HDMI and HDCP compatible devices
. Supports up to 1080p high definition resolution
. Compact design for easy and flexible installation
Specification:
. Video bandwidth: Single-link 165Mhz [4.95Gbps]
. Video support: 480i/480p/720p/1080i/1080p@60
. Audio support: surround sound (up to 7.1 channels) or stereo digital audio
. Transmission range: HD [1080p 24-bit color] - up to 60m [180ft]
. TMDS input signal: 3.3 volts
. Input DDC signal: 5.0 volts/PP
. ESD Protection: Human body model: +/- 8 kV (air-gap discharge)
. +/- 4 kV (contact discharge)
. PCB Stackup: 4 Layouts
. HDMI Connector: Type A 19-pin female
. RJ-45 connector: WE/SS 8P8C
. 3.5mm Connector: (TX and RX) IR Receiver / IR Blaster
. MECHANICAL SPECIFICATIONS
. Case: metal case
. Power supply: (2) 5V1A DC
. Power consumption: 2.5 watts (TX); 1.2 watts (RX)
. operating temperature: 32~104°F
. storage temperature: -4~140°F
. Relative humidity: 20 ~ 90% RH (non-condensing)
. Package contents:
. HDMI Transmitter 1pcs
. HDMI Receiver 1 PCS
. Windband IR Cable Tx1pcs
. IR Rx windband cable 1pcs
DC 5V1A Power Adapter 2 Pcs
Product manual 1pcs
The Single HDMI over Cat5e/6 Extender with Bi-Directional IR extends high definition video and audio signals and IR, up to 180ft/60m over a single Cat5e/6 cable. Features EDID management, which enables and encourages “handshake” of source and display for seamless integration. With a single cost-effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender. In addition, the extender is also equipped with bi-directional IR pass-through that allows for source or display control.
The extender consists of two units: the transmitter unit and the receiver unit. The transmitter unit is used to capture the HDMI input with IR signals and routes the signals through a cost-effective Cat5e/6 cable. The receiver unit is responsible for equalizing the transmitted HDMI signal and reconstructing the IR and serial control signals. The extender provides the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Features:
. Allows HDMI audio/video and IR signals to be transmitted over a single Cat5e/6 cable
. Bi-directional IR system allowing source or display control (IR accessories included)
. 2D / 3D EDID Management
. Transmission Range: Extends 1080p resolution up to 180ft/60m over a single Cat5e or Cat6 cable
. Works with HDMI and HDCP compatible devices
. Supports up to 1080p high definition resolution
. Compact design for easy and flexible installation
Specification:
. Video bandwidth: Single-link 165Mhz [4.95Gbps]
. Video support: 480i/480p/720p/1080i/1080p@60
. Audio support: surround sound (up to 7.1 channels) or stereo digital audio
. Transmission range: HD [1080p 24-bit color] - up to 60m [180ft]
. TMDS input signal: 3.3 volts
. Input DDC signal: 5.0 volts/PP
. ESD Protection: Human body model: +/- 8 kV (air-gap discharge)
. +/- 4 kV (contact discharge)
. PCB Stackup: 4 Layouts
. HDMI Connector: Type A 19-pin female
. RJ-45 connector: WE/SS 8P8C
. 3.5mm Connector: (TX and RX) IR Receiver / IR Blaster
. MECHANICAL SPECIFICATIONS
. Case: metal case
. Power supply: (2) 5V1A DC
. Power consumption: 2.5 watts (TX); 1.2 watts (RX)
. operating temperature: 32~104°F
. storage temperature: -4~140°F
. Relative humidity: 20 ~ 90% RH (non-condensing)
. Package contents:
. HDMI Transmitter 1pcs
. HDMI Receiver 1 PCS
. Windband IR Cable Tx1pcs
. IR Rx windband cable 1pcs
DC 5V1A Power Adapter 2 Pcs
Product manual 1pcs
E60-IR: HDMI Extender Over CAT5E/6 Cable Single 60 Meters With Dual IR RX->TX And TX->RX
- Regular price
- $109.97
- Sale price
- $109.97
- Regular price
-
item: 05-0182
