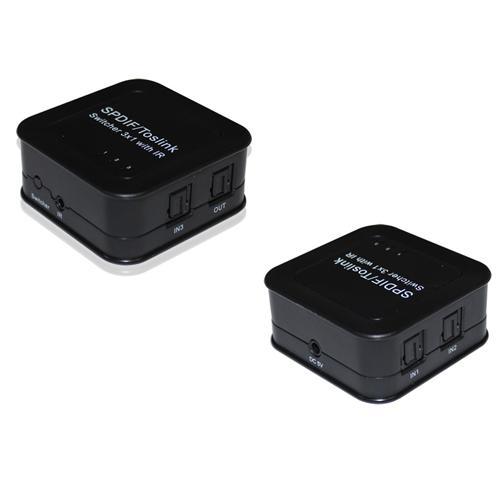

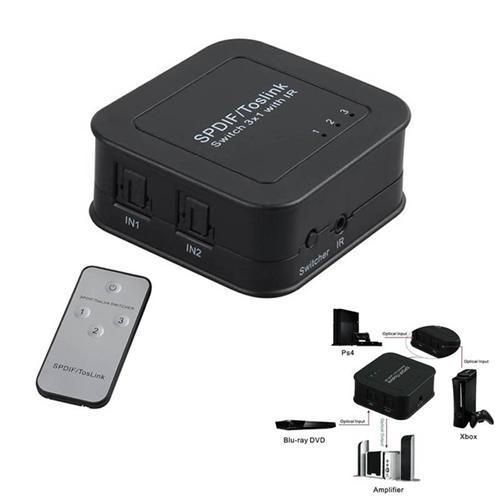

AMX AA-56 SPDIF Fiber Optic Signal Selector. 3 Inputs, One Output.
This SPDIF audio optical switch allows three different sources to be routed to an amplifier. It is a very popular solution in a host of simple applications for both home and commercial installations.
FEATURES
.The input of this fiber optic switch must be connected to the output of the three optical signal sources (toslink).
.Audio format: LPCM2.0/DTS/Dolby-AC3.
.Audio format synchronization
.Optical signal loss less than 0.2Db/m. Routing distance of 40m. (125')
.Input voltage overload protection.
.No signal loss when using the device.
.Very easy to install.
.Requires DC 5v/500ma adapter.
List of accessories:
.A 5v power supply.
.A user manual
.Remote control
.An IR cable.
Specifications:
.LPCM2.0/Dolby-AC3 audio format support
.650nm wavelength tip
.Maximum baud rate 16Mbps
.Output cable distance ?40m (125 ft.) (Use optical fiber with signal loss of less than 0.2Db/m)
.Maximum current during use 100ma
.5v DC adapter
.Operating temperature 0 to +40®C
.Humidity level 5 to 90%RH (non-condensing)
.Dimensions (L x W x H) 54 x 54 x 23.5mm
AMX AA-56 SPDIF Fiber Optic Signal Selector. 3 Inputs, One Output.
This SPDIF audio optical switch allows three different sources to be routed to an amplifier. It is a very popular solution in a host of simple applications for both home and commercial installations.
FEATURES
.The input of this fiber optic switch must be connected to the output of the three optical signal sources (toslink).
.Audio format: LPCM2.0/DTS/Dolby-AC3.
.Audio format synchronization
.Optical signal loss less than 0.2Db/m. Routing distance of 40m. (125')
.Input voltage overload protection.
.No signal loss when using the device.
.Very easy to install.
.Requires DC 5v/500ma adapter.
List of accessories:
.A 5v power supply.
.A user manual
.Remote control
.An IR cable.
Specifications:
.LPCM2.0/Dolby-AC3 audio format support
.650nm wavelength tip
.Maximum baud rate 16Mbps
.Output cable distance ?40m (125 ft.) (Use optical fiber with signal loss of less than 0.2Db/m)
.Maximum current during use 100ma
.5v DC adapter
.Operating temperature 0 to +40®C
.Humidity level 5 to 90%RH (non-condensing)
.Dimensions (L x W x H) 54 x 54 x 23.5mm
AMX AA-56 Toslink Fiber Optic SPDIF Signal Selector 3 Inputs to One Output
- Regular price
- $54.97
- Sale price
- $54.97
- Regular price
-
$65.99
item: 07-0128
