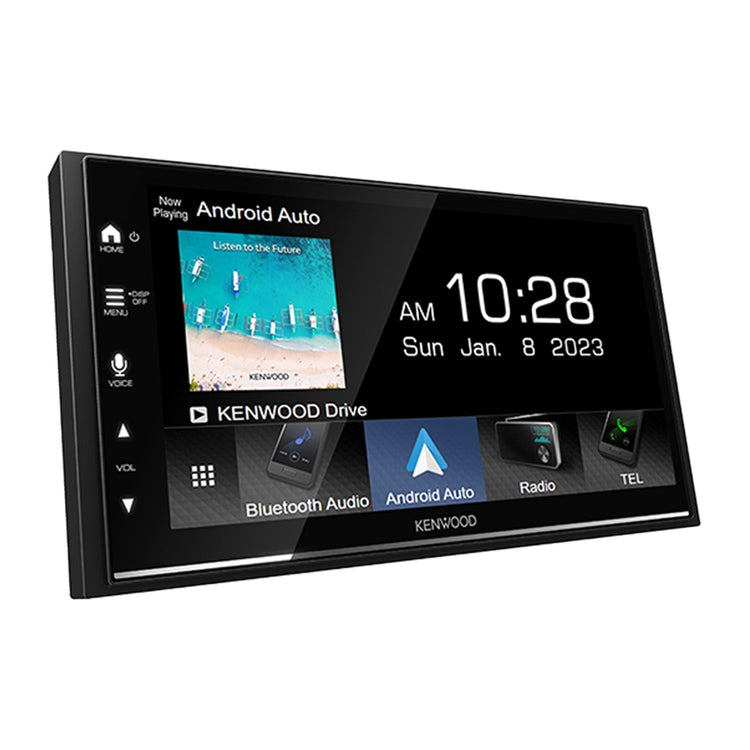

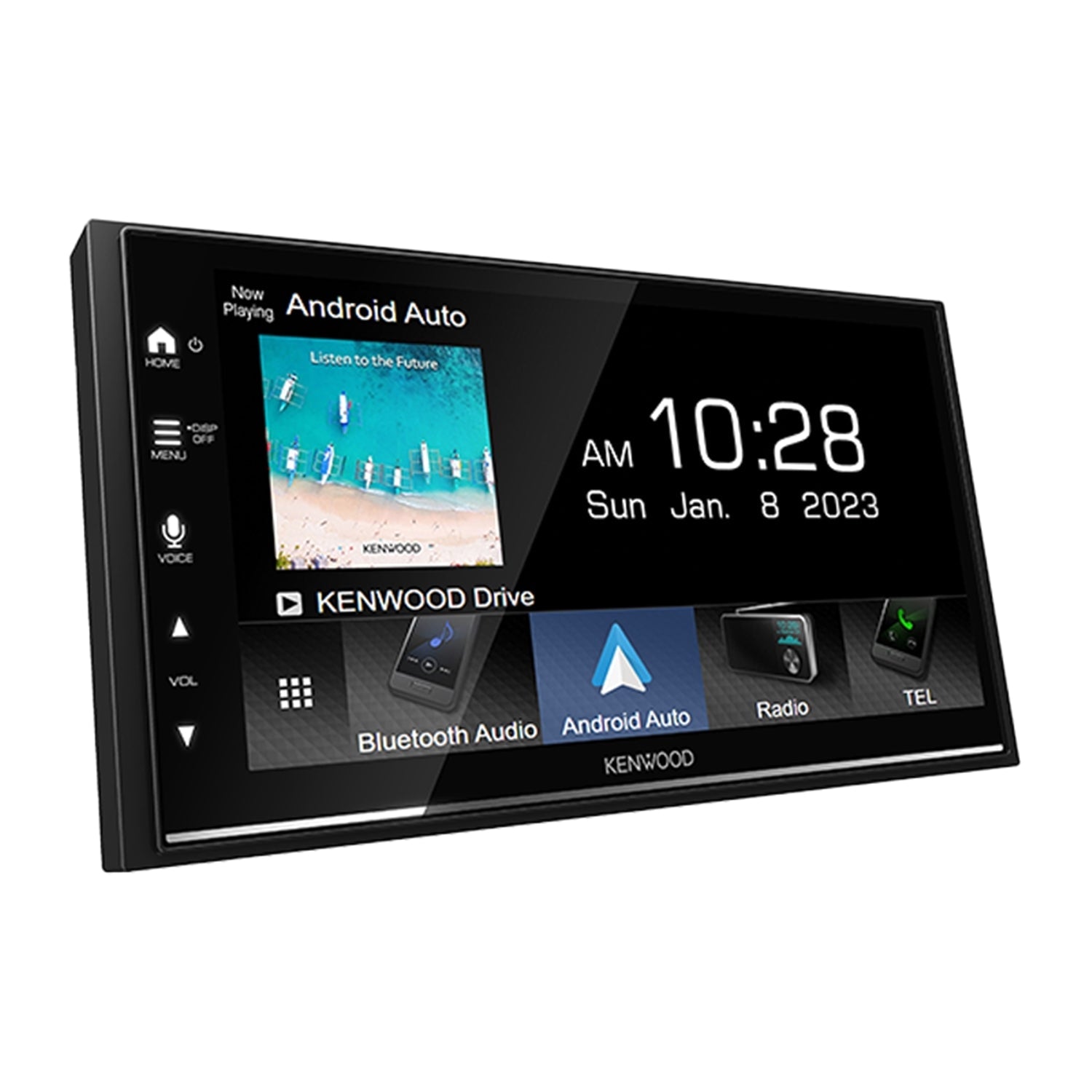

Digital Multimedia Receiver with 6.8" Screen
.Capacitive touch screen
Clear glass display with swipe functionality that provides superior image and touchscreen control.

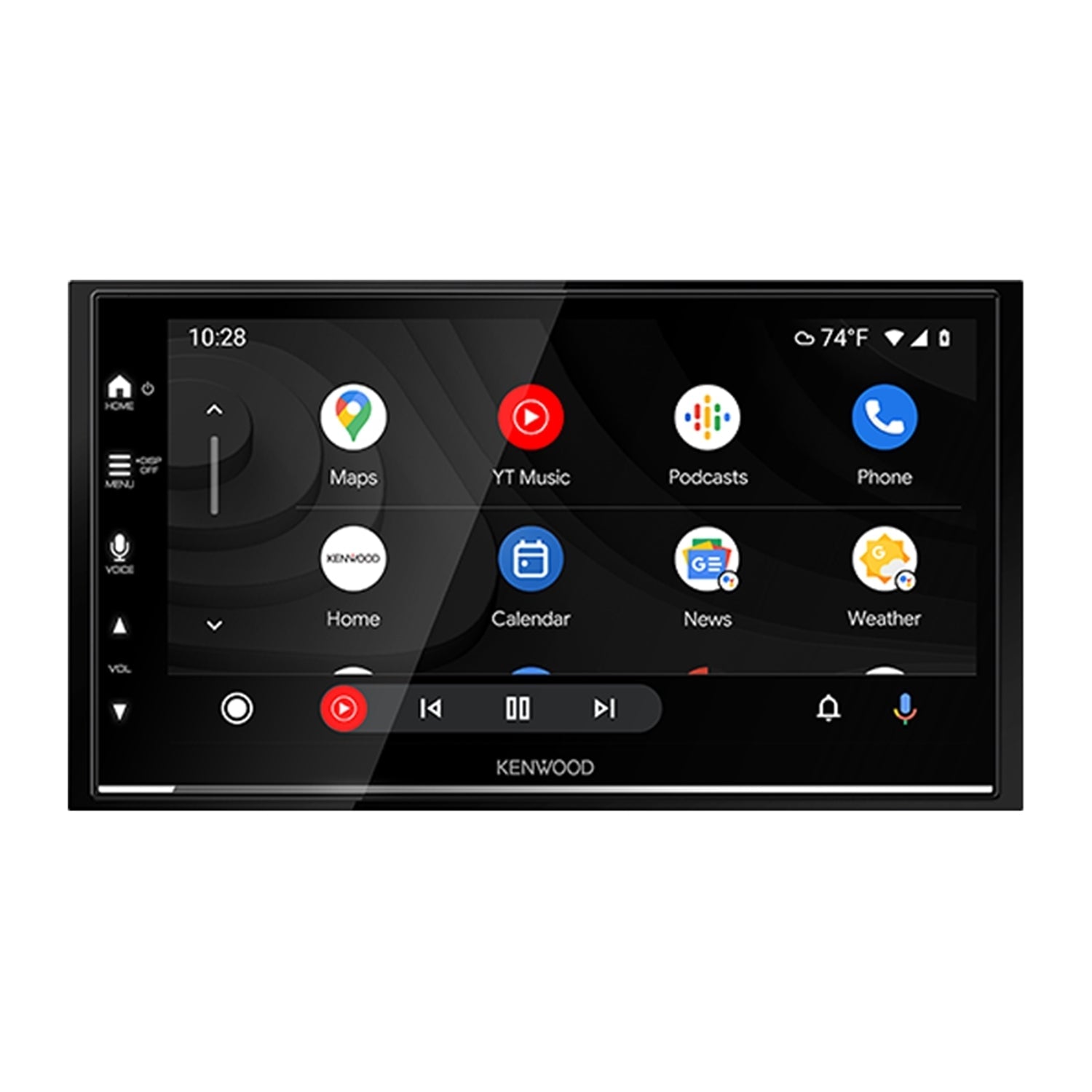

.Android USB Mirroring
Solution to seamlessly display and control your smartphone apps on a screen via USB connection on select Android devices.
.3 camera inputs
Optional camera connection method for up to 3 cameras in various configurations.
.Parking Guidelines
Parking guidelines (requires installation of a compatible backup camera) that enhance the effectiveness of a backup camera.
.Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming simply by switching devices with your friends or family.
.Dual telephone connection
When connected via Bluetooth, you can switch between two phones with the push of a button.
.Graphic Equalizer / Digital Time Alignment
The 13-band EQ and DTA provide optimal tuning enhancements for listeners.
.Driving Equalizer
Amplifies specific frequencies in the audio signal to overcome the negative impact of road noise.
.Variable color lighting
Bright variable color LEDs can be adjusted to match any
colored dashboard lighting.
.Short chassis
With shorter receivers than any of our previous models, installation is easier than ever in a wider range of cars.
Specifications
Monitor
Image Size: 6.75 inches (diagonal) wide
L x H: 151.8 mm x 79.7 mm, 6 x 3-1/7 inches
Display system TN LCD panel
Driving system: TFT active matrix system
Number of pixels: 1,152,000 / 800H x 480V x RGB
Effective pixels: 99.99%
Pixel Layout: RGB Striped Layout
Backlight: LED
USB I/F
Connector Type: Type A
USB Standard: USB2.0 Full Speed/High Speed
File system: FAT 16/32, exFAT
Maximum supply current: DC5V = 1.5A
D/A converter: 24 bits
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
Video Decoder: MPEG1/2, MPEG4/WMV/H.264/MKV
Frequency response 192k Sampling: 20 to 20,000 Hz
96k sampling: 20 to 20,000 Hz
48k sampling: 20 to 20,000 Hz
44.1k sampling: 20 to 20,000 Hz
Total harmonic distortion 1kHz: 0.010%
Signal to noise ratio: 98.5dB
Dynamic range: 89dB
Wifi
IEEE Standard: 802.11a/b/g/n/ac
Frequency range: Dual band (2.4 GHz / 5 GHz)
Channels: Automatic (1-11ch) / Automatic (149,153,155,157,161 channels)
Transfer rate (MAX): 11a: 54 Mbit/s / 11b: 11 Mbit/s 11g: 54 Mbit/s / 11n: 150 Mbit/s / 11ac: 433 Mbit/s
Bluetooth
Technology: BluetoothVer5.0
Frequency: 2.402 to 2.480 GHz
Maximum communication range: Line of sight approximately 10 m (32.8 ft)
An audio codec: SBC/CAA
Multiple Profile Support: Multiple Profile
Profile:
HFP (V1.8) (Hands-Free Profile)
SPP (Serial Port Profile)
A2DP (V1.3.2) (Advanced Audio Distribution Profile)
AVRCP (V1.6.2) (Audio/Video Remote Control Profile)
PBAP (Directory Access Profile)
HDMI Input/Output
Connector Type: Type-D
Input Resolution: VGA (640x480p @59.94Hz/60Hz) / 480p (720x480p @59.94Hz/60Hz)
Linear PCM audio input type: 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24 bit
Audio
Maximum output power (front and rear): 50Wx4
Typical output power (front and rear): Full bandwidth (at less than 1%THD) 22Wx4
Output frequency band: 20 to 88,000 Hz
Pre-output level (V): 4V / 10kOhms
Pre-output impedance (?): =< 600 Ohms
Speaker impedance (?): 4 to 8 ohms
General
Working voltage: 12V DC car battery
Installation dimensions WxHxD:
(Main unit installation size)
180 mm x 100 mm x 75 mm
7-1/16. x 3-15/16 x 2-15/16 inches
(with sleeve)
182 mm x 111 mm x 74 mm
7-3/16 x 4-3/8 x 2-15/16 inches
Weight Main unit: 1.2kg (2.7 lbs)
(Trim plate and mounting sleeve: included)
Digital Multimedia Receiver with 6.8" Screen
.Capacitive touch screen
Clear glass display with swipe functionality that provides superior image and touchscreen control.
.Android USB Mirroring
Solution to seamlessly display and control your smartphone apps on a screen via USB connection on select Android devices.
.3 camera inputs
Optional camera connection method for up to 3 cameras in various configurations.
.Parking Guidelines
Parking guidelines (requires installation of a compatible backup camera) that enhance the effectiveness of a backup camera.
.Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming simply by switching devices with your friends or family.
.Dual telephone connection
When connected via Bluetooth, you can switch between two phones with the push of a button.
.Graphic Equalizer / Digital Time Alignment
The 13-band EQ and DTA provide optimal tuning enhancements for listeners.
.Driving Equalizer
Amplifies specific frequencies in the audio signal to overcome the negative impact of road noise.
.Variable color lighting
Bright variable color LEDs can be adjusted to match any
colored dashboard lighting.
.Short chassis
With shorter receivers than any of our previous models, installation is easier than ever in a wider range of cars.
Specifications
Monitor
Image Size: 6.75 inches (diagonal) wide
L x H: 151.8 mm x 79.7 mm, 6 x 3-1/7 inches
Display system TN LCD panel
Driving system: TFT active matrix system
Number of pixels: 1,152,000 / 800H x 480V x RGB
Effective pixels: 99.99%
Pixel Layout: RGB Striped Layout
Backlight: LED
USB I/F
Connector Type: Type A
USB Standard: USB2.0 Full Speed/High Speed
File system: FAT 16/32, exFAT
Maximum supply current: DC5V = 1.5A
D/A converter: 24 bits
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
Video Decoder: MPEG1/2, MPEG4/WMV/H.264/MKV
Frequency response 192k Sampling: 20 to 20,000 Hz
96k sampling: 20 to 20,000 Hz
48k sampling: 20 to 20,000 Hz
44.1k sampling: 20 to 20,000 Hz
Total harmonic distortion 1kHz: 0.010%
Signal to noise ratio: 98.5dB
Dynamic range: 89dB
Wifi
IEEE Standard: 802.11a/b/g/n/ac
Frequency range: Dual band (2.4 GHz / 5 GHz)
Channels: Automatic (1-11ch) / Automatic (149,153,155,157,161 channels)
Transfer rate (MAX): 11a: 54 Mbit/s / 11b: 11 Mbit/s 11g: 54 Mbit/s / 11n: 150 Mbit/s / 11ac: 433 Mbit/s
Bluetooth
Technology: BluetoothVer5.0
Frequency: 2.402 to 2.480 GHz
Maximum communication range: Line of sight approximately 10 m (32.8 ft)
An audio codec: SBC/CAA
Multiple Profile Support: Multiple Profile
Profile:
HFP (V1.8) (Hands-Free Profile)
SPP (Serial Port Profile)
A2DP (V1.3.2) (Advanced Audio Distribution Profile)
AVRCP (V1.6.2) (Audio/Video Remote Control Profile)
PBAP (Directory Access Profile)
HDMI Input/Output
Connector Type: Type-D
Input Resolution: VGA (640x480p @59.94Hz/60Hz) / 480p (720x480p @59.94Hz/60Hz)
Linear PCM audio input type: 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24 bit
Audio
Maximum output power (front and rear): 50Wx4
Typical output power (front and rear): Full bandwidth (at less than 1%THD) 22Wx4
Output frequency band: 20 to 88,000 Hz
Pre-output level (V): 4V / 10kOhms
Pre-output impedance (?): =< 600 Ohms
Speaker impedance (?): 4 to 8 ohms
General
Working voltage: 12V DC car battery
Installation dimensions WxHxD:
(Main unit installation size)
180 mm x 100 mm x 75 mm
7-1/16. x 3-15/16 x 2-15/16 inches
(with sleeve)
182 mm x 111 mm x 74 mm
7-3/16 x 4-3/8 x 2-15/16 inches
Weight Main unit: 1.2kg (2.7 lbs)
(Trim plate and mounting sleeve: included)
Kenwood - Digital Multimedia Receiver with 6.8" Screen and Bluetooth 5.0, for Car, Black
- Regular price
- $748.00
- Sale price
- $748.00
- Regular price
-
$849.99
item: 46-DMX8709S
