About this article
Equipped with industry-leading Garmin navigation software, offering a variety of display options to make your drive easier. Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calling and music streaming, and the ability to use your smartphone as a wireless remote control.
. A transparent display designed to reduce glare, including a resistive touch sensor for precise control during operation

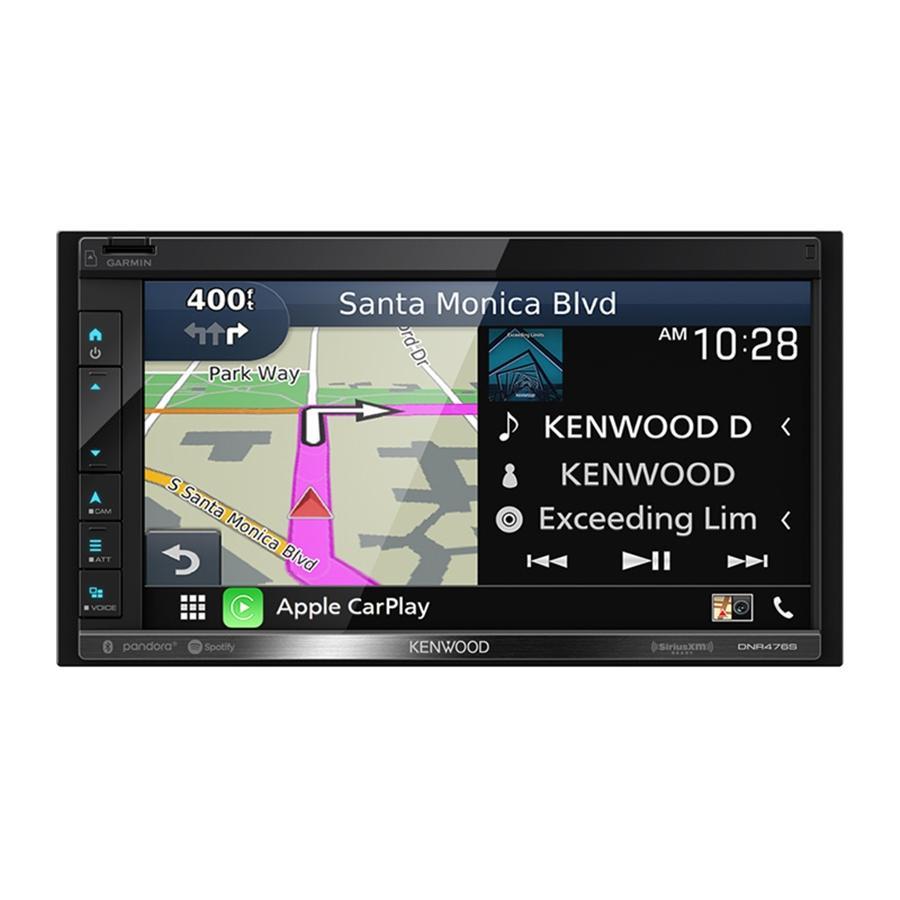

. Lane Assist guides you into the correct lane for a turn or exit, making it easier to navigate unfamiliar intersections and exits.
. Customize your home screen by selecting four shortcut/information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, weather, turn-by-turn navigation, Garmin navigation, and more.
. Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming by simply switching devices with your friends or family.
. When connected via Bluetooth, you can switch between phones with the push of a button.
. A smartphone app can control most basic functions of the receiver via the Bluetooth connection of the paired phone (iPhone or Android).
. Search and select songs from your music collection via Bluetooth connection.
. 13-band equalizer and DTA provide optimal enhancements for listeners.
. Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
. Compatible with various audio file formats, from high-resolution FLAC and WAV files to MP3, WMA and AAC formats.
. The dash cam (DRV-N520) can be controlled and viewed from the touch screen.
. Optional camera connection method for up to 3 cameras in different configurations.
. Parking guide lines (requires installation of a compatible rearview camera) improve the effectiveness of a rearview camera
FEATURES
MONITOR
Image Size: 6.75 inches (diagonal) wide
LxH: 151.8mm x 79.68mm, 5-31/32 x 3-1/8 inch
Display system: TN LCD screen
Drive system: TFT active matrix system
Number of pixels: 1,152,000 800H x 480V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
Rear lighting: LED
USB I/F
USB Standard: USB 2.0 High Speed
File system: FAT 16/32, exFAT, NTFS
Maximum supply current: DC5V = 1.5A
D/A Converter: 24/32Bit
Audio decoder: MP3/WMA/AAC/WAV/FLAC/Vorbis
Video Decoder: MPEG1/2, MPEG4/WMV/H.264/MKV
Frequency Response: 192k Sampling 20 - 88,000 Hz
96k sampling: 20 - 44,000 Hz
48k sampling: 20 - 22,000 Hz
44.1k Sampling: 20 - 20,000 Hz
Total harmonic distortion 1kHz: 0.0001%
Signal to noise ratio: 98.5dB
Dynamic range: 89dB
SD
SD Standard: SD / SDHC / SDXC
Compatible file system: FAT 16/32, exFAT, NTFS
Capacity: maximum 2T bytes
Data transfer rate: maximum 25 MB/s
Audio decoder: MP3/WMA/AAC/WAV/FLAC/Vorbis
Video Decoder: MPEG1/2, MPEG4/WMV/H.264/MKV
BLUETOOTH
Technology: Bluetooth Ver5.0
Frequency: 2.402 - 2.480 GHz
RF Output Power (EIRP): +4 dBm (MAX), Power Class 2
Maximum communication range: Line of sight approximately 10 m (32.8 ft)
Audio codec: SBC / AAC
Multi-profile support: Multi-profile
Profile
HFP (V1.7) (Hands-Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Directory Access Profile)
DSP
Graphics equalizer
BAND: 13Band
frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
Gain: -8 to 0dB
Subwoofer Level: -50 to +10dB
FM
Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
Usable sensitivity S/N30dB: 9.3dBf 0.8?V/75?
Quieting sensitivity DIN S/N 46dB: 10.2dBf 1.13?V / 75Ohms
Frequency response: (±3.0dB) 30Hz - 15kHz
S/N (dB): 65dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)
AM
Frequency Range (Frequency step): 530kHz - 1700kHz (10kHz)
Usable sensitivity: 28dB?
VIDEO
Color system of external video input: NTSC/PAL
External video input level (Mini jacks): 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks): 2 V / 25 kOhms
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks): 0.9 V / 10 kOhms
AUDIO
Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
Output frequency band: 20 - 88,000Hz
Output level (V): 4V / 10kOhms
Preout impedance (?): =< 300 Ohms
Speaker Impedance (?): 4-8 Ohms
NAVIGATION
Receiver: High-sensitivity GPS receiver
Receiving frequency: 1575.42MHz (C/A code)
Acquisition Times:
Cold: 29 seconds (typ)
All satellites at -130dBm Without aiding
Update Rate: 1/second, continuous
Accuracy Position: < 2.5 meters,CEP, at -130dBm
Accuracy Velocity: 0.1meter/sec
Positioning Method: GPS
Antenna: External GPS Antenna
GENERAL
Operating voltage: 12V DC Car Battery
Maximum current consumption: 15A
Installation Dimensions WxHxD: 178mm x 100mm x 155mm 7-3/16 x 4-7/16 x 6-2/16 inch
(with Sleeve): 182mm x 112mm x 153mm 7-3/16 x 4-7/16 x 6 inch
Operational temperature range: -10°C to +60°C
Weight Main unit: 1.7 kg 3.8 lb
Equipped with industry-leading Garmin navigation software, offering a variety of display options to make your drive easier. Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calling and music streaming, and the ability to use your smartphone as a wireless remote control.
. A transparent display designed to reduce glare, including a resistive touch sensor for precise control during operation
. Lane Assist guides you into the correct lane for a turn or exit, making it easier to navigate unfamiliar intersections and exits.
. Customize your home screen by selecting four shortcut/information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, weather, turn-by-turn navigation, Garmin navigation, and more.
. Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming by simply switching devices with your friends or family.
. When connected via Bluetooth, you can switch between phones with the push of a button.
. A smartphone app can control most basic functions of the receiver via the Bluetooth connection of the paired phone (iPhone or Android).
. Search and select songs from your music collection via Bluetooth connection.
. 13-band equalizer and DTA provide optimal enhancements for listeners.
. Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
. Compatible with various audio file formats, from high-resolution FLAC and WAV files to MP3, WMA and AAC formats.
. The dash cam (DRV-N520) can be controlled and viewed from the touch screen.
. Optional camera connection method for up to 3 cameras in different configurations.
. Parking guide lines (requires installation of a compatible rearview camera) improve the effectiveness of a rearview camera
FEATURES
MONITOR
Image Size: 6.75 inches (diagonal) wide
LxH: 151.8mm x 79.68mm, 5-31/32 x 3-1/8 inch
Display system: TN LCD screen
Drive system: TFT active matrix system
Number of pixels: 1,152,000 800H x 480V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
Rear lighting: LED
USB I/F
USB Standard: USB 2.0 High Speed
File system: FAT 16/32, exFAT, NTFS
Maximum supply current: DC5V = 1.5A
D/A Converter: 24/32Bit
Audio decoder: MP3/WMA/AAC/WAV/FLAC/Vorbis
Video Decoder: MPEG1/2, MPEG4/WMV/H.264/MKV
Frequency Response: 192k Sampling 20 - 88,000 Hz
96k sampling: 20 - 44,000 Hz
48k sampling: 20 - 22,000 Hz
44.1k Sampling: 20 - 20,000 Hz
Total harmonic distortion 1kHz: 0.0001%
Signal to noise ratio: 98.5dB
Dynamic range: 89dB
SD
SD Standard: SD / SDHC / SDXC
Compatible file system: FAT 16/32, exFAT, NTFS
Capacity: maximum 2T bytes
Data transfer rate: maximum 25 MB/s
Audio decoder: MP3/WMA/AAC/WAV/FLAC/Vorbis
Video Decoder: MPEG1/2, MPEG4/WMV/H.264/MKV
BLUETOOTH
Technology: Bluetooth Ver5.0
Frequency: 2.402 - 2.480 GHz
RF Output Power (EIRP): +4 dBm (MAX), Power Class 2
Maximum communication range: Line of sight approximately 10 m (32.8 ft)
Audio codec: SBC / AAC
Multi-profile support: Multi-profile
Profile
HFP (V1.7) (Hands-Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Directory Access Profile)
DSP
Graphics equalizer
BAND: 13Band
frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
Gain: -8 to 0dB
Subwoofer Level: -50 to +10dB
FM
Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
Usable sensitivity S/N30dB: 9.3dBf 0.8?V/75?
Quieting sensitivity DIN S/N 46dB: 10.2dBf 1.13?V / 75Ohms
Frequency response: (±3.0dB) 30Hz - 15kHz
S/N (dB): 65dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)
AM
Frequency Range (Frequency step): 530kHz - 1700kHz (10kHz)
Usable sensitivity: 28dB?
VIDEO
Color system of external video input: NTSC/PAL
External video input level (Mini jacks): 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks): 2 V / 25 kOhms
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks): 0.9 V / 10 kOhms
AUDIO
Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
Output frequency band: 20 - 88,000Hz
Output level (V): 4V / 10kOhms
Preout impedance (?): =< 300 Ohms
Speaker Impedance (?): 4-8 Ohms
NAVIGATION
Receiver: High-sensitivity GPS receiver
Receiving frequency: 1575.42MHz (C/A code)
Acquisition Times:
Cold: 29 seconds (typ)
All satellites at -130dBm Without aiding
Update Rate: 1/second, continuous
Accuracy Position: < 2.5 meters,CEP, at -130dBm
Accuracy Velocity: 0.1meter/sec
Positioning Method: GPS
Antenna: External GPS Antenna
GENERAL
Operating voltage: 12V DC Car Battery
Maximum current consumption: 15A
Installation Dimensions WxHxD: 178mm x 100mm x 155mm 7-3/16 x 4-7/16 x 6-2/16 inch
(with Sleeve): 182mm x 112mm x 153mm 7-3/16 x 4-7/16 x 6 inch
Operational temperature range: -10°C to +60°C
Weight Main unit: 1.7 kg 3.8 lb

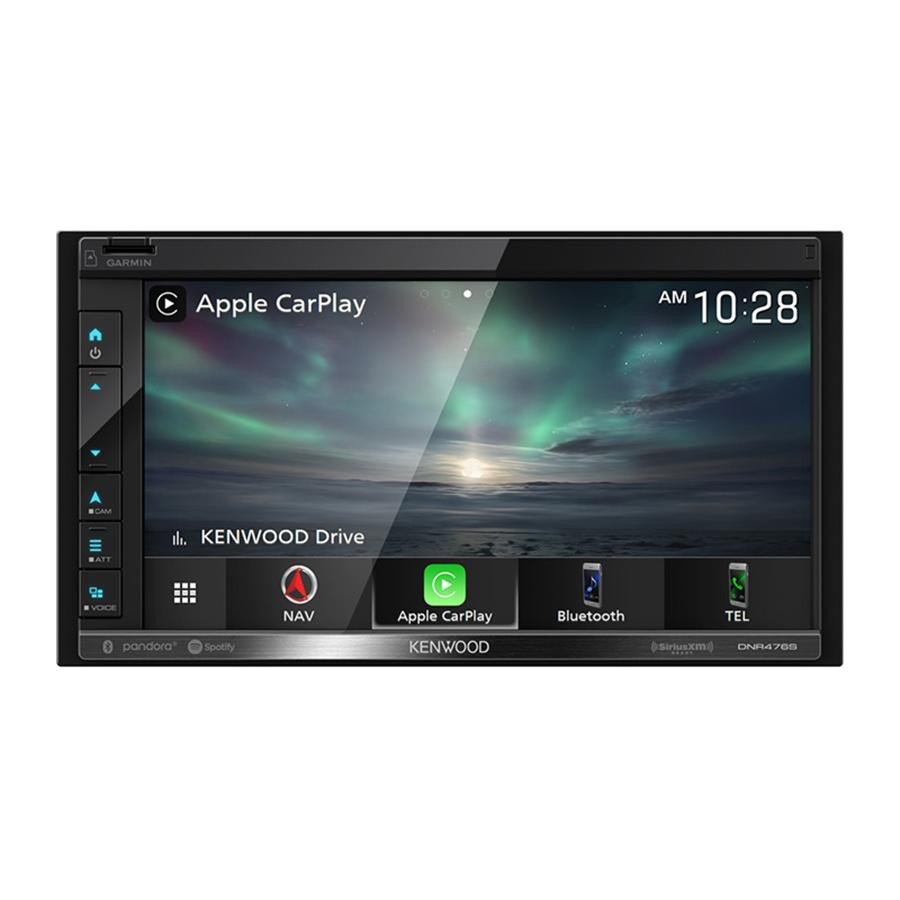

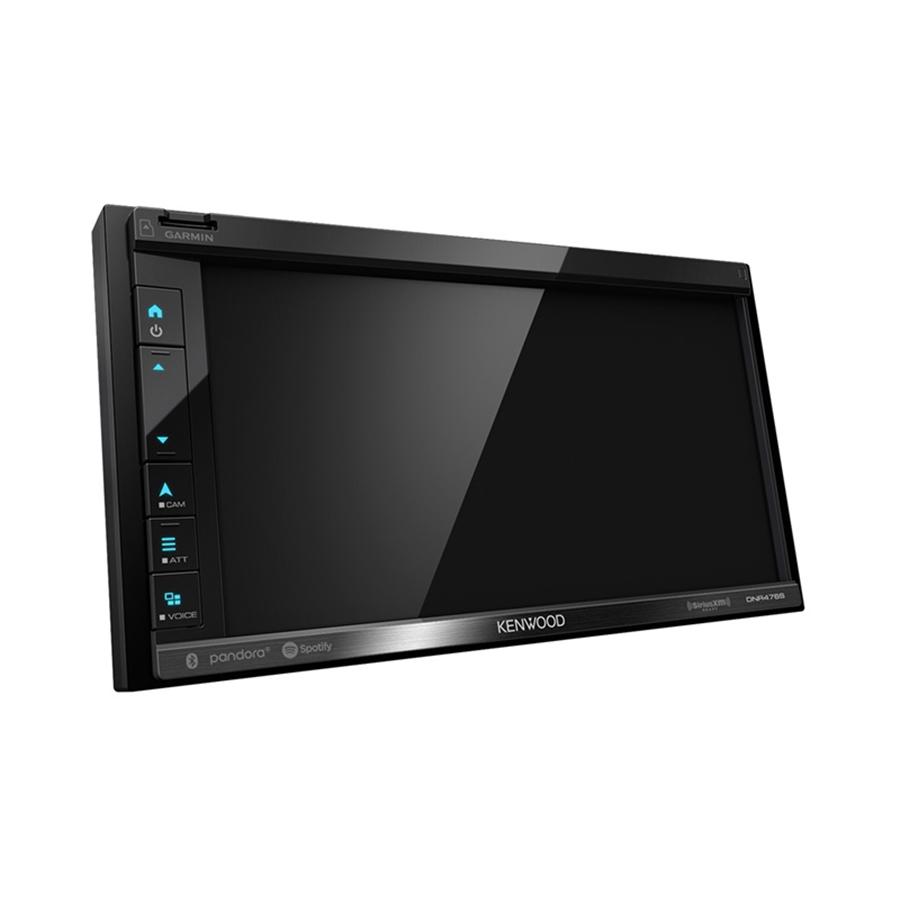

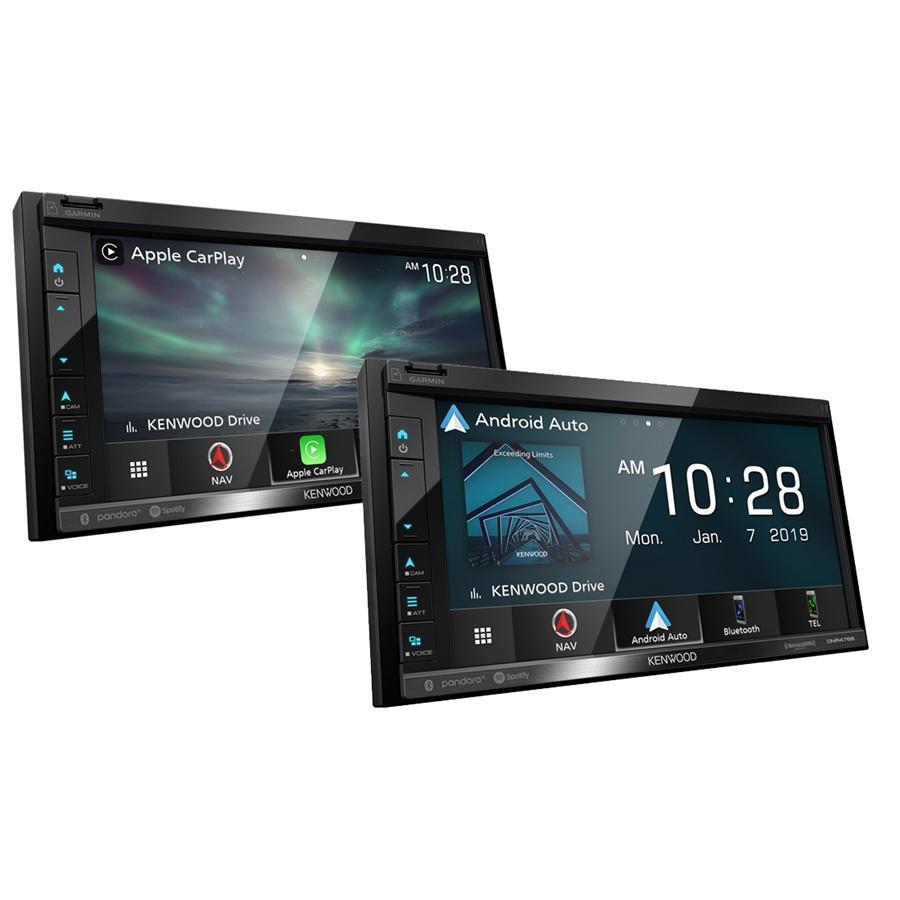

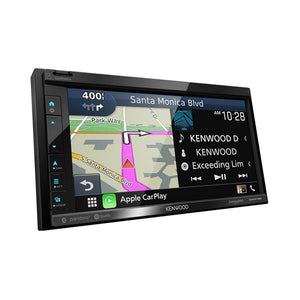

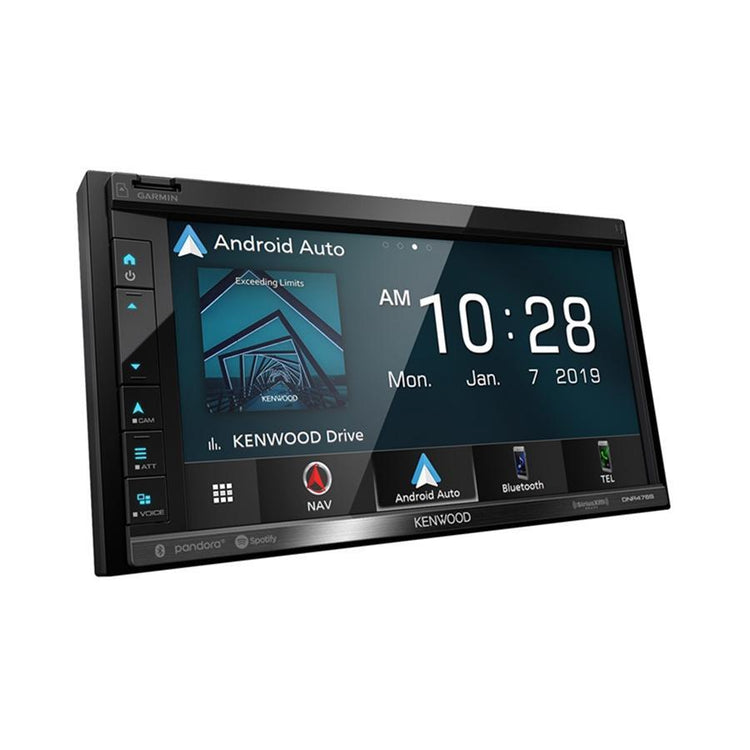

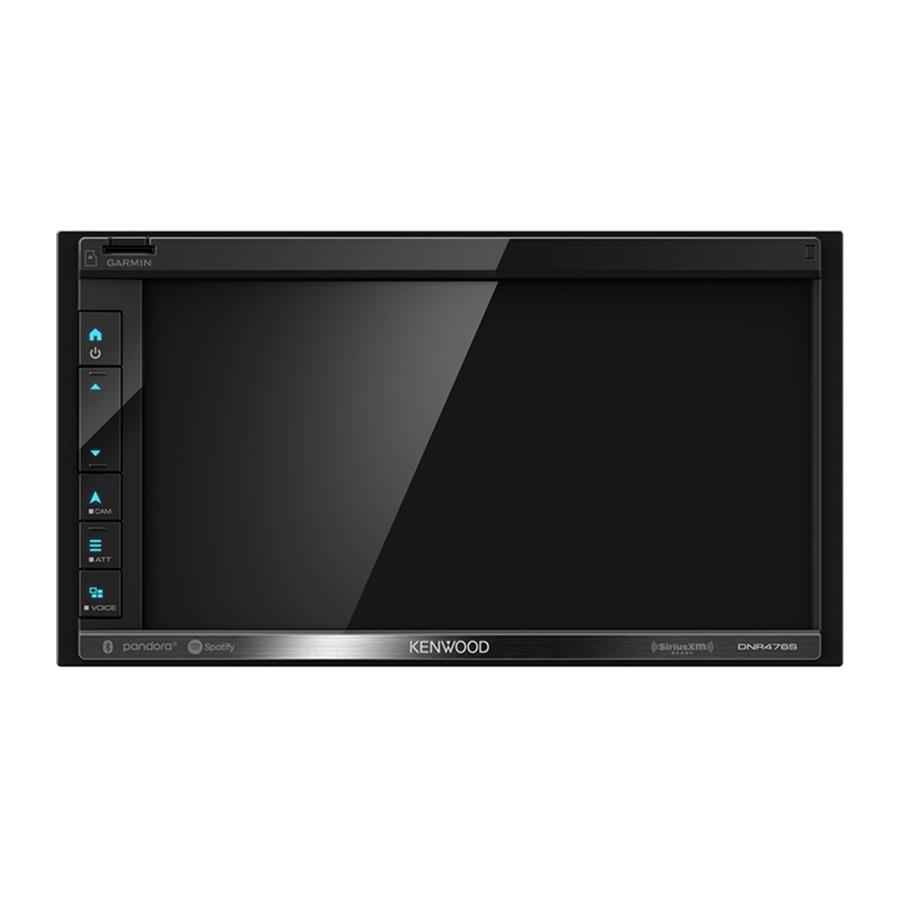

Kenwood DNR476S Car Digital Navigation Multimedia Radio Receiver with 6.8'' Monitor and Bluetooth, Black
- Regular price
- $748.00
- Sale price
- $748.00
- Regular price
-
$999.99
item: 46-DNR476S
