The D Series amplifiers offer a powerful solution in a compact design, ideal for upgrading your car audio system.
Extended frequency response
Supporting High-Resolution Audio, the KAC-D3104 is ideal for high-resolution audio playback as it features a frequency response that extends up to 50 kHz.
Double sigma reader
This advanced negative feedback circuit improves the damping factor and increases accuracy and sound quality. When a signal is fed to a subwoofer, such as a 50 Hz note, the speaker moves and creates the note. However, because the speaker has mass and suspension, it will not stop moving once it is in motion. This extra motion (sound) creates a type of distortion that is not part of the original signal. The negative feedback circuit detects this unwanted motion and sends an opposing pulse to stop the speaker like an electronic brake.
Small size big power
The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who do not want to sacrifice cargo space or prefer hidden installations.
Specifications
Maximum Energy: 600W
RMS output power (4ohm) 50W x 4
RMS output power (2ohm) 75W x 4
Bridged Output Power: 15W x 2 (bridged)
Main Features:
Speaker Level Input
Signal detection
Variable high pass filter
Variable low pass filter
Bass boost
Dimensions: (L) 6-11/16'' x (H) 2-3/16'' x (D)7-3/8''
Weight: 2.9 Pounds (1.3kg)
The D Series amplifiers offer a powerful solution in a compact design, ideal for upgrading your car audio system.
Extended frequency response
Supporting High-Resolution Audio, the KAC-D3104 is ideal for high-resolution audio playback as it features a frequency response that extends up to 50 kHz.
Double sigma reader
This advanced negative feedback circuit improves the damping factor and increases accuracy and sound quality. When a signal is fed to a subwoofer, such as a 50 Hz note, the speaker moves and creates the note. However, because the speaker has mass and suspension, it will not stop moving once it is in motion. This extra motion (sound) creates a type of distortion that is not part of the original signal. The negative feedback circuit detects this unwanted motion and sends an opposing pulse to stop the speaker like an electronic brake.
Small size big power
The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who do not want to sacrifice cargo space or prefer hidden installations.
Specifications
Maximum Energy: 600W
RMS output power (4ohm) 50W x 4
RMS output power (2ohm) 75W x 4
Bridged Output Power: 15W x 2 (bridged)
Main Features:
Speaker Level Input
Signal detection
Variable high pass filter
Variable low pass filter
Bass boost
Dimensions: (L) 6-11/16'' x (H) 2-3/16'' x (D)7-3/8''
Weight: 2.9 Pounds (1.3kg)

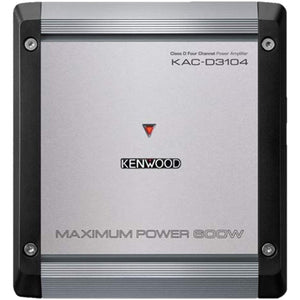

Kenwood - 4 Channel Class D Car Power Amplifier, Silver
- Regular price
- $234.97
- Sale price
- $234.97
- Regular price
-
$281.99
item: 46-KAC-D3104
