Designed to meet 10 Gigabit IEEE 802.3an rev. 1.0 transmission requirements, and are guaranteed to meet or exceed TIA-568-C.2 performance specifications
With overall overlap of solid shielding design support category 6A channel performance of 100 meters
Category 6A Shielded Keystone Jacks provide flexibility in field installation and easy connection
Contact design improves plug-socket connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
Type 110 contacts provide better wire retention and ease of termination
T568A and T568B wiring with easy-to-read color wiring label for maximum flexibility
Please note: This keystone jack will fit into the ZPP24-BLANK correctly
FEATURES
TRANSMISSION PERFORMANCE
ANSI/TIA-568-C.2: Meets or exceeds specifications for Category 6A components (1-500 MHz)
TRANSMISSION SUPPORTS
Unshielded twisted pair (U/UTP) or shielded (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP)
JACK TYPE
8P8C "RJ45" type
WIRING DIAGRAM
ANSI/TIA-568-C.2: T568A and T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
WIRE GAUGE
22-24 AWG (0.644-0.511 mm)
ELECTRIC
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric Withstand Voltage: 1000 VDC/AC peak contact to contact @ 60 Hz for 1 min
1500 VDC/AC peak contact to panel @ 60 Hz for 1 min
Contact resistance of spring wire: max 20 mOhm
IDC contact resistance: max 2.5 mOhm
CONSTRUCTION
Case: Fully shielded zinc alloy
grounding for 2.5 x 0.5 mm (0.110 x 0.020 in) female disconnect
Jack Spring Wire: Phosphor bronze alloy plated with 50 ?in gold over 70-100 ?in nickel
IDC: Type 110, phosphor bronze alloy with 100% tin (Sn) alloy 100-?in
MECHANICAL
Total contact force: min 800 g for 8 wires
Retention force: 50 N (11 lbf) for 60 ± 5 s
Coupling life: min 750 cycles
MOUNTING DIMENSIONS:
D 42.40 mm H 25.80 mm L 14.60 mm
D 1.669 in H 1.016 in W 0.575 in
COMPLIANCE
ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68, Subpart F, UL 94V-0
APPLICATIONS
100BASE-T
SignaMax Part # KJS458MT-C6AC
Designed to meet 10 Gigabit IEEE 802.3an rev. 1.0 transmission requirements, and are guaranteed to meet or exceed TIA-568-C.2 performance specifications
With overall overlap of solid shielding design support category 6A channel performance of 100 meters
Category 6A Shielded Keystone Jacks provide flexibility in field installation and easy connection
Contact design improves plug-socket connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
Type 110 contacts provide better wire retention and ease of termination
T568A and T568B wiring with easy-to-read color wiring label for maximum flexibility
Please note: This keystone jack will fit into the ZPP24-BLANK correctly
FEATURES
TRANSMISSION PERFORMANCE
ANSI/TIA-568-C.2: Meets or exceeds specifications for Category 6A components (1-500 MHz)
TRANSMISSION SUPPORTS
Unshielded twisted pair (U/UTP) or shielded (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP)
JACK TYPE
8P8C "RJ45" type
WIRING DIAGRAM
ANSI/TIA-568-C.2: T568A and T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
WIRE GAUGE
22-24 AWG (0.644-0.511 mm)
ELECTRIC
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric Withstand Voltage: 1000 VDC/AC peak contact to contact @ 60 Hz for 1 min
1500 VDC/AC peak contact to panel @ 60 Hz for 1 min
Contact resistance of spring wire: max 20 mOhm
IDC contact resistance: max 2.5 mOhm
CONSTRUCTION
Case: Fully shielded zinc alloy
grounding for 2.5 x 0.5 mm (0.110 x 0.020 in) female disconnect
Jack Spring Wire: Phosphor bronze alloy plated with 50 ?in gold over 70-100 ?in nickel
IDC: Type 110, phosphor bronze alloy with 100% tin (Sn) alloy 100-?in
MECHANICAL
Total contact force: min 800 g for 8 wires
Retention force: 50 N (11 lbf) for 60 ± 5 s
Coupling life: min 750 cycles
MOUNTING DIMENSIONS:
D 42.40 mm H 25.80 mm L 14.60 mm
D 1.669 in H 1.016 in W 0.575 in
COMPLIANCE
ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68, Subpart F, UL 94V-0
APPLICATIONS
100BASE-T
SignaMax Part # KJS458MT-C6AC

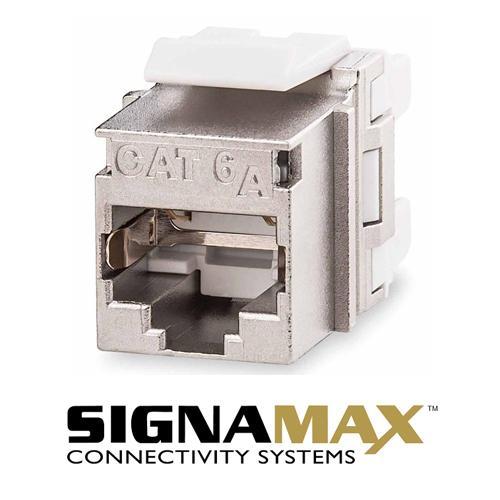

Signamax Cat6a RJ-45 Punch Type 110 Female Keystone Connector SHIELDED
