Description

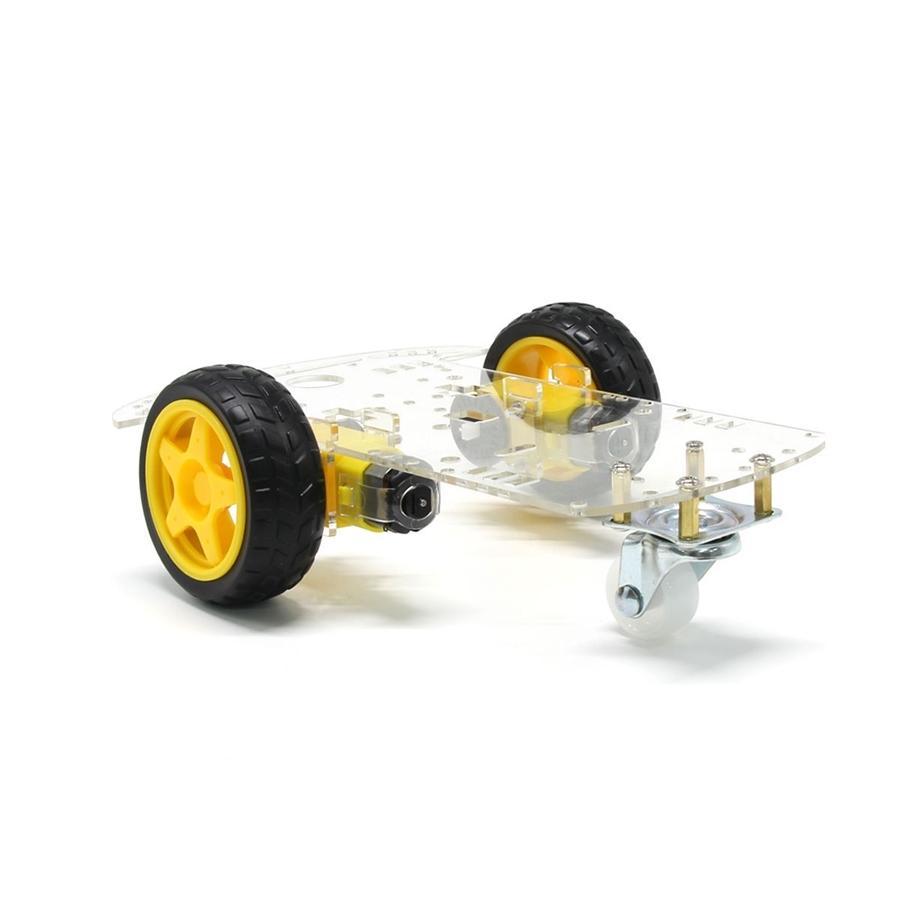

Simple mechanical structure and easy installation. Intelligent robot car with code disk and ideal for DIY. Use for distance and speed measurement by the tachometer encoder with the car. Realize functions of tracing, obstacle avoidance, distance test, speed test, wireless remote control when used with other devices.

Note: This car is the tachometer encoder. Come with 4 AA batteries box (batteries not included). The car chassis is transparent. you need to remove the protective paper.

Features

. 2 DC geared motors, motor reduction ratio 48:1 Speed ​​selection button
. Holes for all kinds of modules.
. Obstacle avoidance, distance test, speed test, wireless remote control
. Convenient installation, firm and reliable

Features
For engine:

Voltage DC 3V DC6V DC 7.2V Current 160mA 220mA 250mA No-load speed 120rpm/min 200rpm/min 250rpm/min Load speed 100rpm/min 175rpm/min 210rpm/min Torque 0.45kg.cm 1.0kg.cm 1.5kg.cm Reduction ratio 1:48 Noise ?65dB Motor size 65mm x 18mm x 22mm (L * W * H)

For smart car:

Voltage 3~9V Drive mode 2WD Current 600mA Chassis thickness 3mm Load ?2kg Car weight 285g Speed ​​0.6m/s Car size 220 x 175 x 65mm

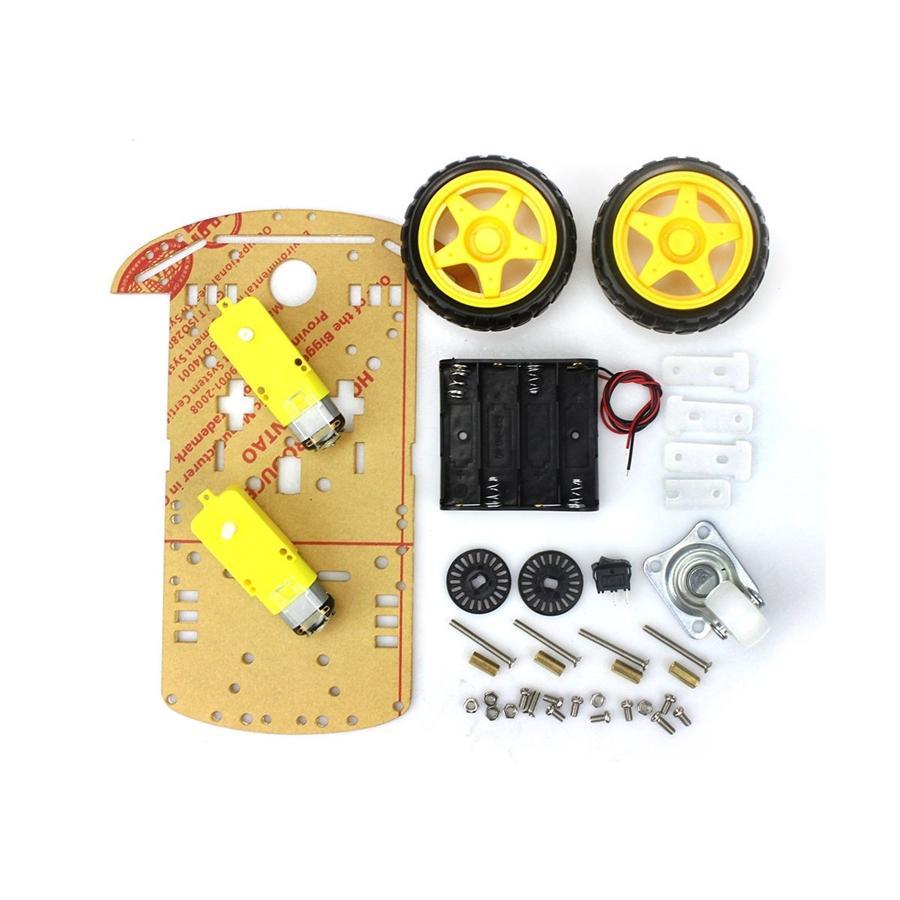

Package Contents

1 x Car Chassis
2 x gear motor
2 x car tire

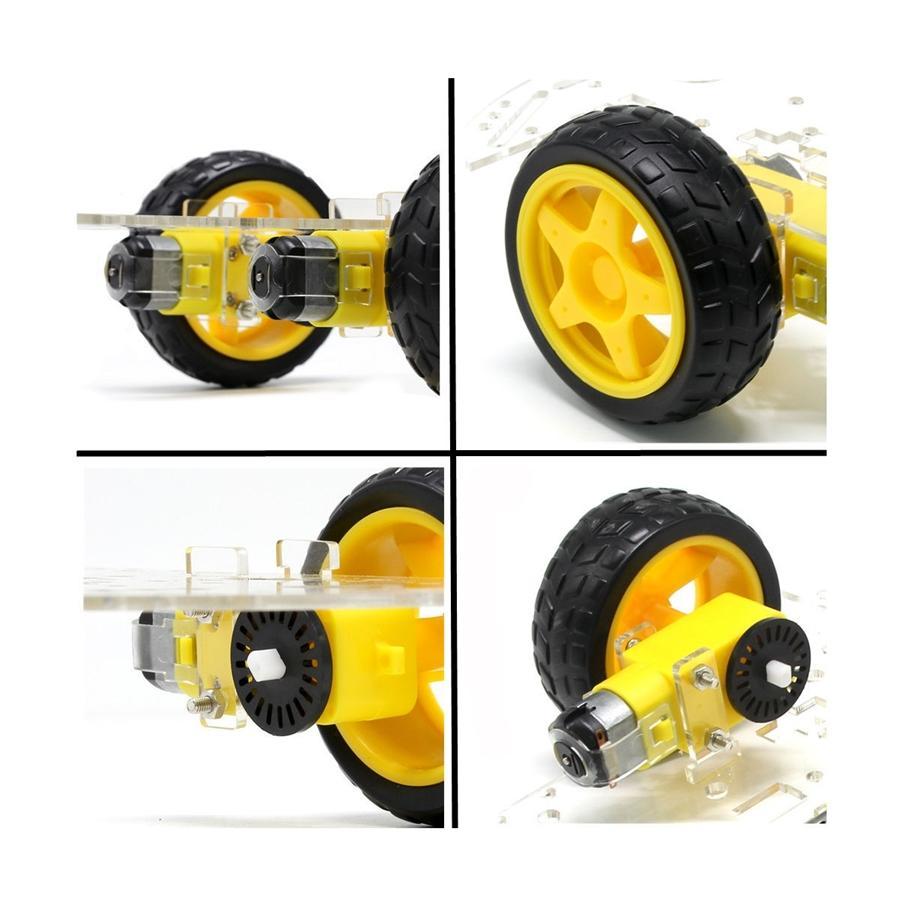

2 x speed encoder
4 x fasteners
1 x universal wheel
1 x Battery Box (Batteries not included)
All necessary screws and nuts.
