16 AWG 2-Conductor Solid Shielded CMR Fire Alarm Cable Specifications:
- UL1424, Power Limited Fire Alarm Circuit Cable
- UL 13, Limited Power Circuit Cable
- UL1666, Riser Flame Test - Certifications
NEC Article 725, 760 and 800
UL Listed Type FPLR / CL3R / CMR
RoHS: compliant
UL
Physical characteristics:
Cable Construction: 16 AWG 2C Shielded
Conductor material: SBC
Insulation Material / Wall Insulation Thickness: PVC / 0.01 in.
Insulation color code: Black, Red
Ripcord: Yes
Shielding material: aluminum foil
STRAND (# Strands / AWG): Stranded Tinned Copper (7/32 AWG)
Sheath Material / Sheath Wall Thickness: FRPVC / 0.015
Sheath color: Red
Sheath Flame Retardancy Rating: CMR
Overall temperature: 75°C
Temperature range: -10°C to 75°C
Cable Weight: 41 lb / 1000 ft
Electrical characteristics:
Nominal voltage: 300V
Nominal mutual capacitance: 59.44 pF/m
DC Resistance: 4.2 Ohm / 1000 feet
Cable marking:
SHIELDED FIRE ALARM (UL) E364603-T 18 AWG 4 COND SOLID 75C TYPE FPLR OR CL3R --- CMR ROHS 0000FT USED / 1000FT REMAINING
16 AWG 2-Conductor Solid Shielded CMR Fire Alarm Cable Specifications:
- UL1424, Power Limited Fire Alarm Circuit Cable
- UL 13, Limited Power Circuit Cable
- UL1666, Riser Flame Test - Certifications
NEC Article 725, 760 and 800
UL Listed Type FPLR / CL3R / CMR
RoHS: compliant
UL
Physical characteristics:
Cable Construction: 16 AWG 2C Shielded
Conductor material: SBC
Insulation Material / Wall Insulation Thickness: PVC / 0.01 in.
Insulation color code: Black, Red
Ripcord: Yes
Shielding material: aluminum foil
STRAND (# Strands / AWG): Stranded Tinned Copper (7/32 AWG)
Sheath Material / Sheath Wall Thickness: FRPVC / 0.015
Sheath color: Red
Sheath Flame Retardancy Rating: CMR
Overall temperature: 75°C
Temperature range: -10°C to 75°C
Cable Weight: 41 lb / 1000 ft
Electrical characteristics:
Nominal voltage: 300V
Nominal mutual capacitance: 59.44 pF/m
DC Resistance: 4.2 Ohm / 1000 feet
Cable marking:
SHIELDED FIRE ALARM (UL) E364603-T 18 AWG 4 COND SOLID 75C TYPE FPLR OR CL3R --- CMR ROHS 0000FT USED / 1000FT REMAINING

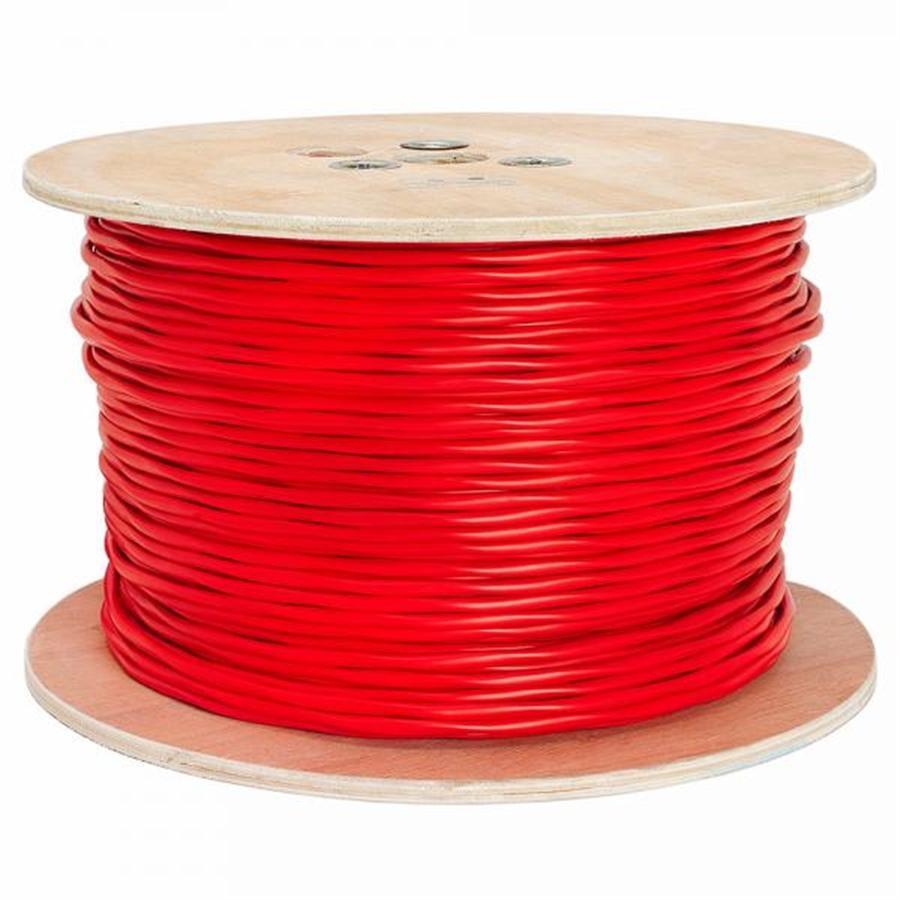

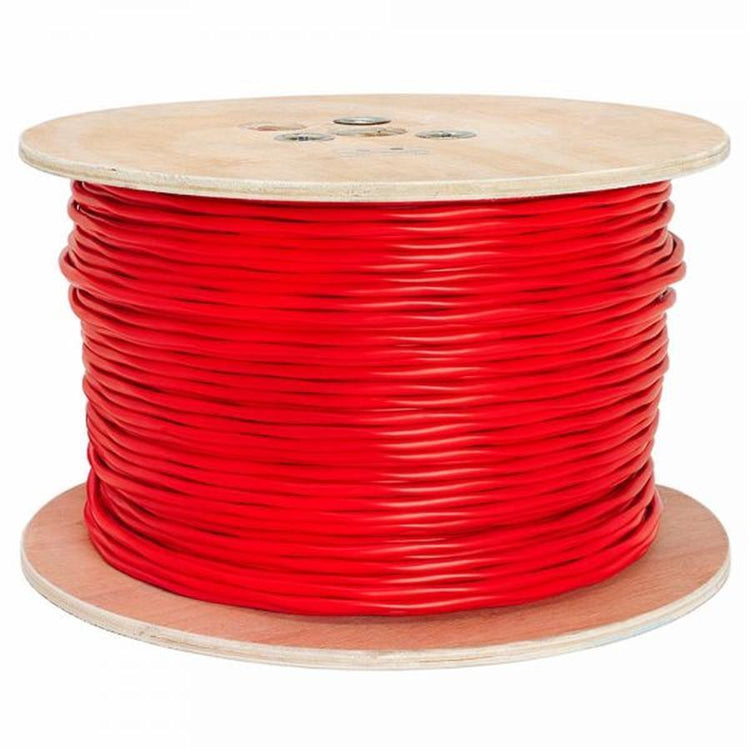

TechCraft - Solid Fire Alarm Cables, 16AWG, 2 Conductor, Shielded, FPLR/CMR, 1000 Feet Length, Red
- Regular price
- $279.97
- Sale price
- $279.97
- Regular price
-
item: 98-CZSF162-04415
