About this article
. 110 IDC type termination with internal board (requires punchdown tool)
. 100 MHz / 1 Gb performance
. Keystone dimensions provide compatibility with other devices

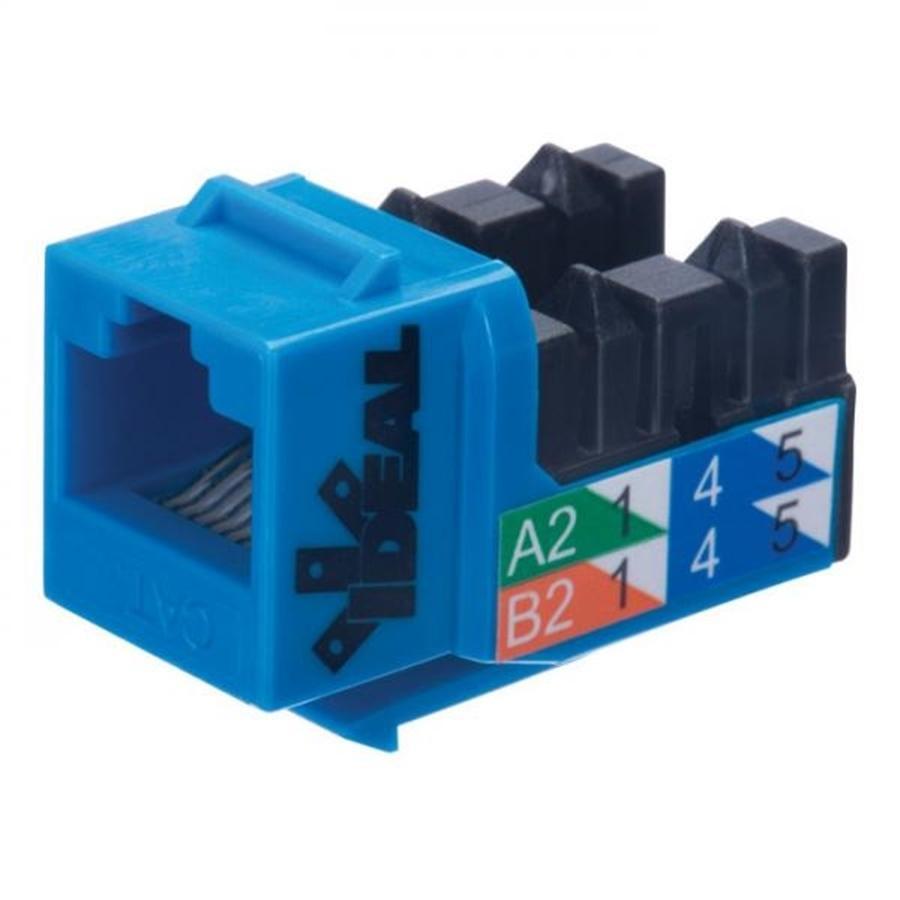

IDEAL Keystone Connectors are high-performance modular jack connectors designed to exceed the requirements of the ANSI/TIA-568-C.2 CAT5e standard, providing installers with the flexibility to use these products in residential and commercial installations for applications such as Gigabit Ethernet.
All connectors feature a robust internal PCB design, used to help reduce NEXT (near-end crosstalk) and improve RF performance at higher frequencies. The IDC tower design and structure helps simplify and speed up the wiring and termination process. The tapered towers help separate each pair in the individual IDC location without the need to untwist each pair. This allows the pairs to easily maintain the recommended maximum of 1/2'' twist per pair of the cable jacket.
Twisted pairs stay together. With the PCB design, each color pair is terminated side by side in a uniform pattern. Less time spent untying, separating and routing individual conductors to IDC contacts.
The sockets have 568A and 568B wiring diagrams and pins pre-labeled at each IDC location.
IDEAL Keystone connectors have an industry standard profile interface and locking location (14.5mm x 16mm), so they are compatible with many other Keystone size panels, racks and faceplates.
Standard, medium-sized (2.75 x 4.75 in.) faceplates in white and ivory are available in 1, 2, 3, 4, 6, and 0-port configurations. Blank inserts can be used to fill unused ports on the faceplate.
Jack Specifications:
Cable Types: 8-Conductor UTP 22-24 AWG Copper Cables (CAT5e/CAT6)
Max. Cable OD.: 260''
Termination Tool: 110 Punchdown
Housing material: PC UL94-V0, multiple colors
Contact Finish: 50? Gold over 50? Nickel
IDC Housing Material: UL94-V0 PC Rated, Black
IDC terminal contact: Phosphor bronze, nickel 50?
IDC Cover: PC UL94-V0, black
Printed circuit board: FR4
Certifications and standards: cULus UL listed; ANSI/TIA-568-C-2, ISO/IEC 11801, Class D (CAT5e) / E (CAT6), FCC Part 68 compliant; RoHS compliant
Support: T568A and T568B dual wiring
Number of connector connection cycles: 750 minimum
Electrical specifications:
Current Rating: 1.5 Amps
Insulation resistance: 50m ohm
Contact resistance: 20m ohm
DC resistance: 0.1 ohm
Dielectric withstand voltage: 1000V
. 110 IDC type termination with internal board (requires punchdown tool)
. 100 MHz / 1 Gb performance
. Keystone dimensions provide compatibility with other devices
IDEAL Keystone Connectors are high-performance modular jack connectors designed to exceed the requirements of the ANSI/TIA-568-C.2 CAT5e standard, providing installers with the flexibility to use these products in residential and commercial installations for applications such as Gigabit Ethernet.
All connectors feature a robust internal PCB design, used to help reduce NEXT (near-end crosstalk) and improve RF performance at higher frequencies. The IDC tower design and structure helps simplify and speed up the wiring and termination process. The tapered towers help separate each pair in the individual IDC location without the need to untwist each pair. This allows the pairs to easily maintain the recommended maximum of 1/2'' twist per pair of the cable jacket.
Twisted pairs stay together. With the PCB design, each color pair is terminated side by side in a uniform pattern. Less time spent untying, separating and routing individual conductors to IDC contacts.
The sockets have 568A and 568B wiring diagrams and pins pre-labeled at each IDC location.
IDEAL Keystone connectors have an industry standard profile interface and locking location (14.5mm x 16mm), so they are compatible with many other Keystone size panels, racks and faceplates.
Standard, medium-sized (2.75 x 4.75 in.) faceplates in white and ivory are available in 1, 2, 3, 4, 6, and 0-port configurations. Blank inserts can be used to fill unused ports on the faceplate.
Jack Specifications:
Cable Types: 8-Conductor UTP 22-24 AWG Copper Cables (CAT5e/CAT6)
Max. Cable OD.: 260''
Termination Tool: 110 Punchdown
Housing material: PC UL94-V0, multiple colors
Contact Finish: 50? Gold over 50? Nickel
IDC Housing Material: UL94-V0 PC Rated, Black
IDC terminal contact: Phosphor bronze, nickel 50?
IDC Cover: PC UL94-V0, black
Printed circuit board: FR4
Certifications and standards: cULus UL listed; ANSI/TIA-568-C-2, ISO/IEC 11801, Class D (CAT5e) / E (CAT6), FCC Part 68 compliant; RoHS compliant
Support: T568A and T568B dual wiring
Number of connector connection cycles: 750 minimum
Electrical specifications:
Current Rating: 1.5 Amps
Insulation resistance: 50m ohm
Contact resistance: 20m ohm
DC resistance: 0.1 ohm
Dielectric withstand voltage: 1000V
Ideal Industries Cat5e RJ45 100 Type 90 T568A/B Blue
- Regular price
- $3.47
- Sale price
- $3.47
- Regular price
-
item: 98-ZK8C-90B-ID
Couldn't load pickup availability
