These wall mount cabinets are designed to support 19 inch EIA equipment
.Swivel design that also allows the rear section to completely disconnect from the cabinet for easy installation
.Constructed of fully welded cold rolled steel with a black powder coated finish
.Locking front and rear doors prevent unauthorized access to equipment
.Two sets of rails provide a stable mounting structure.
.Vents in the top panel for mounting optional fans
.Multiple cable entry options provide greater flexibility during installation
.Mounting rails are adjustable to accommodate a variety of equipment
.The lockable acrylic front door is removable and reversible.
.Holds up to 100 pounds
Dimensions:
23.43" x 21.25" x 23.62"
Adjustable front rack rail:
- 14.5" to 18.5" from front rail to rear rail (distance between mounting points)
- 16.5" to 20.5" from front rail to back of cabinet
Features
- 3/ 4", 1" and 2" pipe knockouts for pipe fittings
- Cable entry at the top and bottom
- Lace stitches reduce cable clutter
- Lockable plexiglass front door
- 12 x 12 removable back panel
- Removable side panels
- Reversible front door for right or left handed use
Compliance
ANSI/EIA RS-310D
IEC60297-2
DIN41494; Part 1
DIN41494; Part 7
Understand
(2) Grounding Kit
(48) 10-32 Mounting Screws and Washers
(1) Paper mounting template
(2) Keys
These wall mount cabinets are designed to support 19 inch EIA equipment
.Swivel design that also allows the rear section to completely disconnect from the cabinet for easy installation
.Constructed of fully welded cold rolled steel with a black powder coated finish
.Locking front and rear doors prevent unauthorized access to equipment
.Two sets of rails provide a stable mounting structure.
.Vents in the top panel for mounting optional fans
.Multiple cable entry options provide greater flexibility during installation
.Mounting rails are adjustable to accommodate a variety of equipment
.The lockable acrylic front door is removable and reversible.
.Holds up to 100 pounds
Dimensions:
23.43" x 21.25" x 23.62"
Adjustable front rack rail:
- 14.5" to 18.5" from front rail to rear rail (distance between mounting points)
- 16.5" to 20.5" from front rail to back of cabinet
Features
- 3/ 4", 1" and 2" pipe knockouts for pipe fittings
- Cable entry at the top and bottom
- Lace stitches reduce cable clutter
- Lockable plexiglass front door
- 12 x 12 removable back panel
- Removable side panels
- Reversible front door for right or left handed use
Compliance
ANSI/EIA RS-310D
IEC60297-2
DIN41494; Part 1
DIN41494; Part 7
Understand
(2) Grounding Kit
(48) 10-32 Mounting Screws and Washers
(1) Paper mounting template
(2) Keys

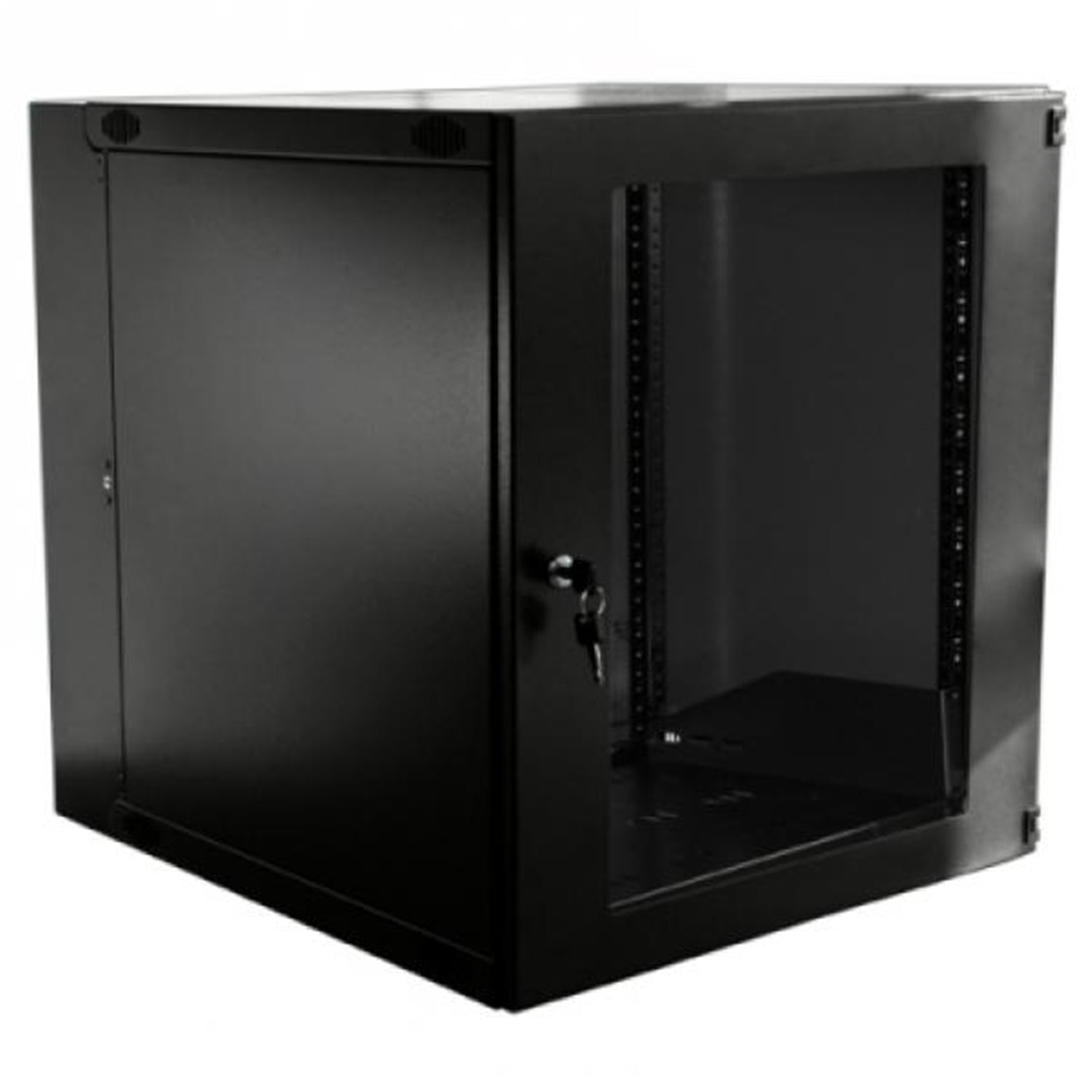

TechCraft - 12U Double Hinge Wall Mount Network Cabinet, Swing Away Design, Plexiglass Door with Lock, Black
- Regular price
- $419.97
- Sale price
- $419.97
- Regular price
-
item: 98-ZPP-RM-12UFLEX
