The Black Box Cat5e network cable is the perfect option for establishing fast and reliable Ethernet connections over long distances. With an impressive 1000 feet of length, this cable is ideal for large network cabling projects. It is CMP (Plenum) rated and offers exceptional performance.
This 24 AWG Cat5e cable, made of 4-pair UTP, is capable of transmitting data at speeds of up to 1000 Mbps, making it an ideal choice for a range of applications including voice, 10BASE-T, 4-/16-Mbps Token Ring, 100BASE-TX, 100 Mbps TP-PMD, T1, 155 Mbps ATM, and 622 Mbps ATM.
With low attenuation and exceptional power sum crosstalk characteristics over a wide frequency range, this cable ensures optimum signal quality. In addition, it features a longitudinal tear cord for easy jacket opening and an Accu-Pull measurement system for easy installation.
This cable is TAA compliant, GSA certified, and ETL component-level verified, making it a trusted choice for demanding government and commercial projects.
Features:
- Cable: 24 AWG solid, 4-pair, CAT5e UTP, Type CMP (cUL) certified
- Tested and characterized at 350 MHz
- CAT5e compliance means reliable compatibility for future applications
- Best for Voice, 10BASE-T, Token Ring 4-/16-Mbps, 100BASE-TX, 100 Mbps TP-PMD, T1, 155 Mbps ATM, 622 Mbps ATM
- Low attenuation and power sum crosstalk characteristics over a wide frequency range
- Longitudinal tear cord for easy opening of the sheath
- Accu-Pull measuring system
- Two descending sequences - foot markings on the cable
- TAA Compliant, GSA Certified, ETL Component Level Verified
Specifications:
- ACR (minimum at 100 m): 16.3 dB at 100 MHz; 1.4 dB at 200 MHz
- Attenuation (minimum at 100 m): 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz
- Cable Type: 4 Pair UTP
- Capacitance unbalance (maximum): 3,300 pF/km (pair to ground)
- Characteristic impedance: 1-350 MHz: 100 ± 15 ohms
- Conductor: 24 AWG, solid, bare copper
- Conductor Resistance: 93.8 ohms/68°F (20°C) maximum
- Delay Skew (Maximum): 1-350 MHz: 40 nS/100 m
- EL-FEXT (Minimum at 100 m): 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz
- NEXT (minimum at 100 m): 38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz
- PS-ACR: 14.3 dB at 100 MHz
- PS-ELFEXT: 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz
- PS-NEXT: 36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz
- Return loss: 20.1 dB at 100 MHz
- Propagation speed: 62.1% at 350 MHz
The Black Box Cat5e network cable is the perfect option for establishing fast and reliable Ethernet connections over long distances. With an impressive 1000 feet of length, this cable is ideal for large network cabling projects. It is CMP (Plenum) rated and offers exceptional performance.
This 24 AWG Cat5e cable, made of 4-pair UTP, is capable of transmitting data at speeds of up to 1000 Mbps, making it an ideal choice for a range of applications including voice, 10BASE-T, 4-/16-Mbps Token Ring, 100BASE-TX, 100 Mbps TP-PMD, T1, 155 Mbps ATM, and 622 Mbps ATM.
With low attenuation and exceptional power sum crosstalk characteristics over a wide frequency range, this cable ensures optimum signal quality. In addition, it features a longitudinal tear cord for easy jacket opening and an Accu-Pull measurement system for easy installation.
This cable is TAA compliant, GSA certified, and ETL component-level verified, making it a trusted choice for demanding government and commercial projects.
Features:
- Cable: 24 AWG solid, 4-pair, CAT5e UTP, Type CMP (cUL) certified
- Tested and characterized at 350 MHz
- CAT5e compliance means reliable compatibility for future applications
- Best for Voice, 10BASE-T, Token Ring 4-/16-Mbps, 100BASE-TX, 100 Mbps TP-PMD, T1, 155 Mbps ATM, 622 Mbps ATM
- Low attenuation and power sum crosstalk characteristics over a wide frequency range
- Longitudinal tear cord for easy opening of the sheath
- Accu-Pull measuring system
- Two descending sequences - foot markings on the cable
- TAA Compliant, GSA Certified, ETL Component Level Verified
Specifications:
- ACR (minimum at 100 m): 16.3 dB at 100 MHz; 1.4 dB at 200 MHz
- Attenuation (minimum at 100 m): 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz
- Cable Type: 4 Pair UTP
- Capacitance unbalance (maximum): 3,300 pF/km (pair to ground)
- Characteristic impedance: 1-350 MHz: 100 ± 15 ohms
- Conductor: 24 AWG, solid, bare copper
- Conductor Resistance: 93.8 ohms/68°F (20°C) maximum
- Delay Skew (Maximum): 1-350 MHz: 40 nS/100 m
- EL-FEXT (Minimum at 100 m): 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz
- NEXT (minimum at 100 m): 38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz
- PS-ACR: 14.3 dB at 100 MHz
- PS-ELFEXT: 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz
- PS-NEXT: 36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz
- Return loss: 20.1 dB at 100 MHz
- Propagation speed: 62.1% at 350 MHz

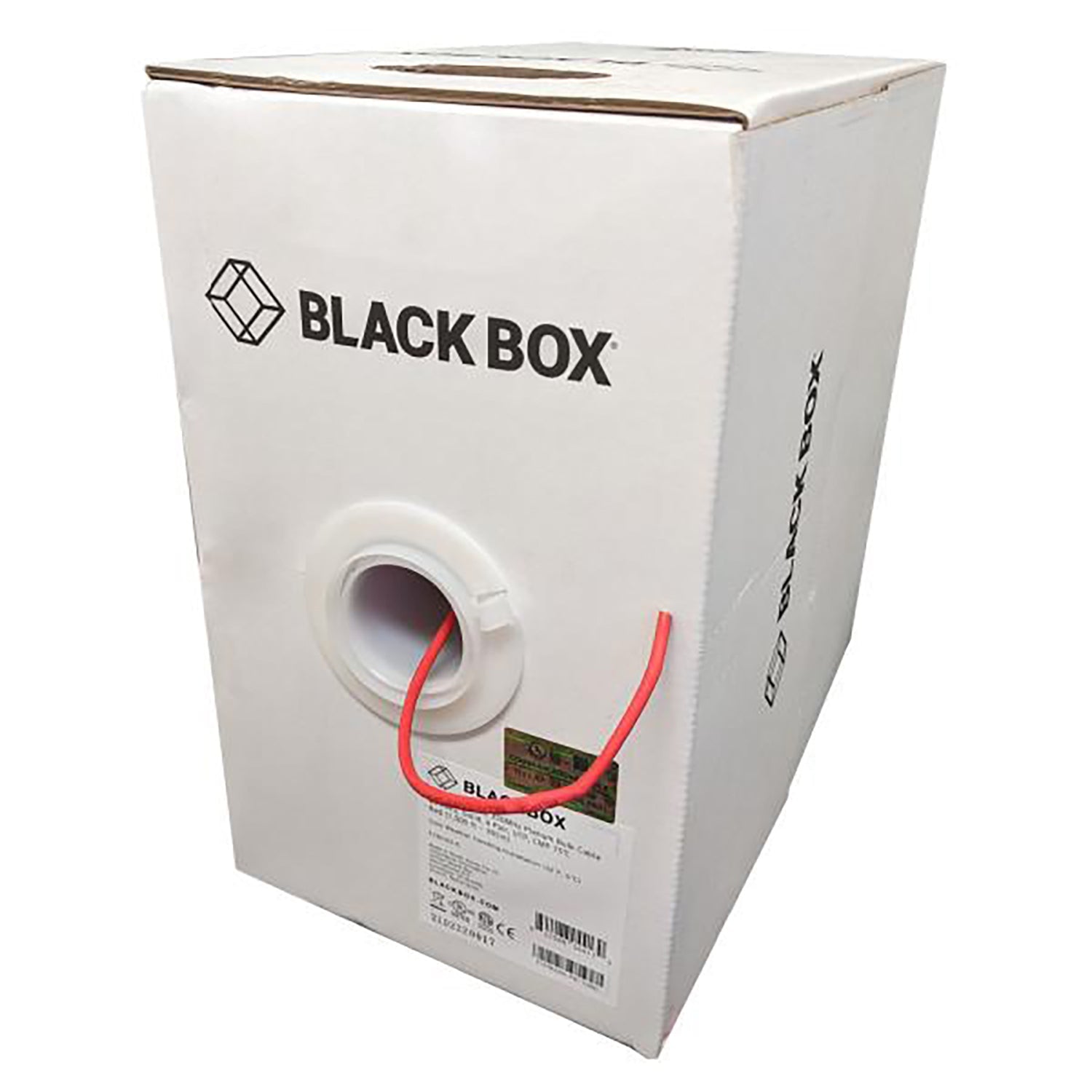

Black Box - Cat5e UTP Solid Network Cable, 350MHz, 1000 Feet Length, FT6/CMP, Red
- Regular price
- $439.97
- Sale price
- $439.97
- Regular price
-
$499.97
item: 98-CZ-5EFT6BBXR
