About this article

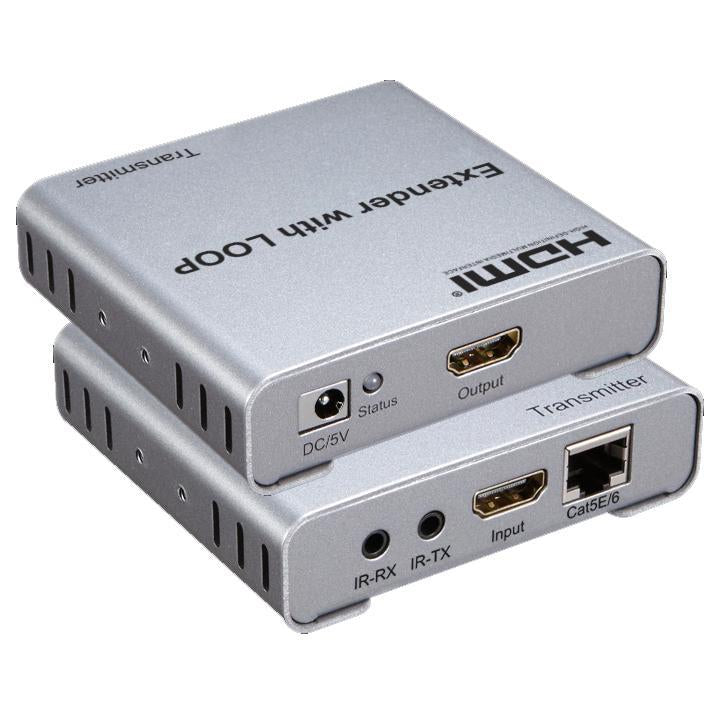

This 4K HDMI extender uses a single cat5e or cat6 cable (recommended) instead of an HDMI cable to transmit a high-definition signal up to 100 meters, reducing the cost. This 4K HDMI extender is designed to provide long-distance transmission of high-definition signal.
Features:
1: Supports HDMI 1.4b.
2: Support local loopback.
3: Support 100m long distance transmission
4: Low energy consumption, low temperature and high safety.
Specification:
CAT5e/CAT6 cable length between Rx and TX …………… ................ Up to 100 meters
HDMI Input….. ………………… ... ……… .................... 4k / 1080p / 720p / 576p / 576i / 480p / 480i
HDMI Output….. …………….… ........................ 4k / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Maximum bandwidth ………………………………………………………………………… .. 340 MHz
Maximum baud rate ………………. ……. …………………. …………. ………………… ... 3x3.4Gbps
Input video signal …………. …………………………………………….… ...... 0.5 ~ 1.5Volts pp
DDC output signal ………………………………………………… ................. 5Volts pp (TTL)
Input HDMI cable distance …………. ………… ............ ≤10m HDMI standard cable AWG26 Output
HDMI Cable Distance ....................................... ≤10m HDMI Standard Cable AWG26
TX Max operating current ……………………………………… ... …………. ……………. 350 mA
RX Max Operating Current ………………………………………… ... …………………… .. 200mA
Power Adapter Format ……… ...… ... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 1A
Operating temperature range …… .. ……………. ……………………… .... …… (-15 to + 55 ℃)
Operating humidity range ………………………….…. …… 5 to 90% RH (non-condensing)
Dimensions (L x W x H) ………………………………. ……………. ……… 81x87.5x23.5 (mm)
Weight TX….. …………………………………………….. ……………………… ........ …… 210g
RX Weight ................................................. .................................................. .................. 200g
Connection and operation:

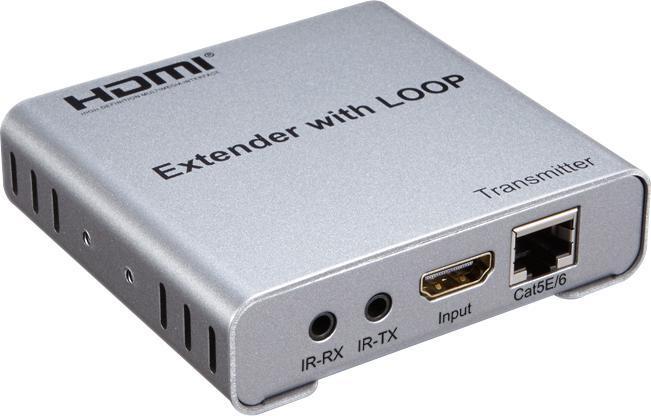

1.Connect an HDMI cable between source device and TX Extender, the maximum cable distance is 10 meters
2.Connect an HDMI cable between the display device and RX Extender, the maximum cable distance is 10 meters
3.Connect single cat-5e or cat-6 cables (recommended) instead of HDMI cables between TX and RX Extender, the maximum cable distance is 100 meters
4.The 2 pairs of IR RX and IR TX cables connect the 3.5mm IR RX and IR TX ports of the receiver and transmitter respectively.

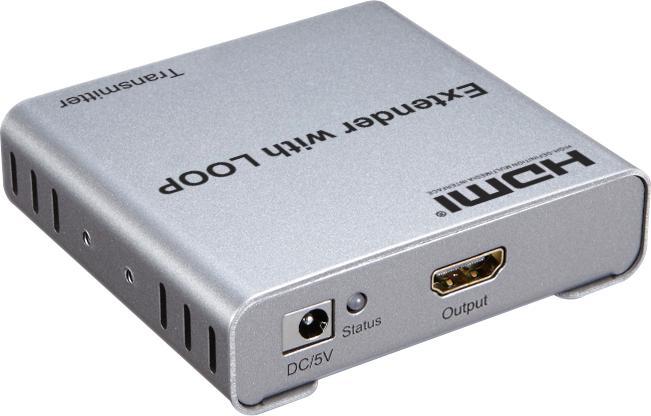

5.Connect 5V power to TX and RX. 6.LED indicator
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red and keeps flashing.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red and keeps flashing.
Package includes:
1. TX Transmitter x1
2. RX Receiver x1
3. IR cable x2
4. DC 4.5V/1A Power Adapter x2
5. User Manual x1
This 4K HDMI extender uses a single cat5e or cat6 cable (recommended) instead of an HDMI cable to transmit a high-definition signal up to 100 meters, reducing the cost. This 4K HDMI extender is designed to provide long-distance transmission of high-definition signal.
Features:
1: Supports HDMI 1.4b.
2: Support local loopback.
3: Support 100m long distance transmission
4: Low energy consumption, low temperature and high safety.
Specification:
CAT5e/CAT6 cable length between Rx and TX …………… ................ Up to 100 meters
HDMI Input….. ………………… ... ……… .................... 4k / 1080p / 720p / 576p / 576i / 480p / 480i
HDMI Output….. …………….… ........................ 4k / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Maximum bandwidth ………………………………………………………………………… .. 340 MHz
Maximum baud rate ………………. ……. …………………. …………. ………………… ... 3x3.4Gbps
Input video signal …………. …………………………………………….… ...... 0.5 ~ 1.5Volts pp
DDC output signal ………………………………………………… ................. 5Volts pp (TTL)
Input HDMI cable distance …………. ………… ............ ≤10m HDMI standard cable AWG26 Output
HDMI Cable Distance ....................................... ≤10m HDMI Standard Cable AWG26
TX Max operating current ……………………………………… ... …………. ……………. 350 mA
RX Max Operating Current ………………………………………… ... …………………… .. 200mA
Power Adapter Format ……… ...… ... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 1A
Operating temperature range …… .. ……………. ……………………… .... …… (-15 to + 55 ℃)
Operating humidity range ………………………….…. …… 5 to 90% RH (non-condensing)
Dimensions (L x W x H) ………………………………. ……………. ……… 81x87.5x23.5 (mm)
Weight TX….. …………………………………………….. ……………………… ........ …… 210g
RX Weight ................................................. .................................................. .................. 200g
Connection and operation:
1.Connect an HDMI cable between source device and TX Extender, the maximum cable distance is 10 meters
2.Connect an HDMI cable between the display device and RX Extender, the maximum cable distance is 10 meters
3.Connect single cat-5e or cat-6 cables (recommended) instead of HDMI cables between TX and RX Extender, the maximum cable distance is 100 meters
4.The 2 pairs of IR RX and IR TX cables connect the 3.5mm IR RX and IR TX ports of the receiver and transmitter respectively.
5.Connect 5V power to TX and RX. 6.LED indicator
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red and keeps flashing.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red and keeps flashing.
Package includes:
1. TX Transmitter x1
2. RX Receiver x1
3. IR cable x2
4. DC 4.5V/1A Power Adapter x2
5. User Manual x1
E1004K-IR: 100M HDMI Extender Over CAT5 4KX2K Supported With IR Repeater
- Regular price
- $149.97
- Sale price
- $149.97
- Regular price
-
item: 52-E1004K-IR
