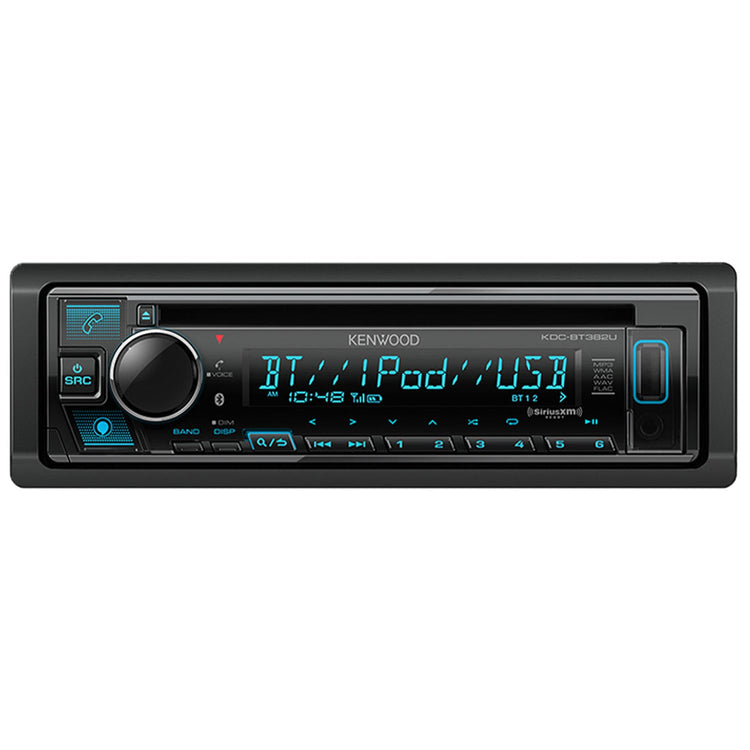

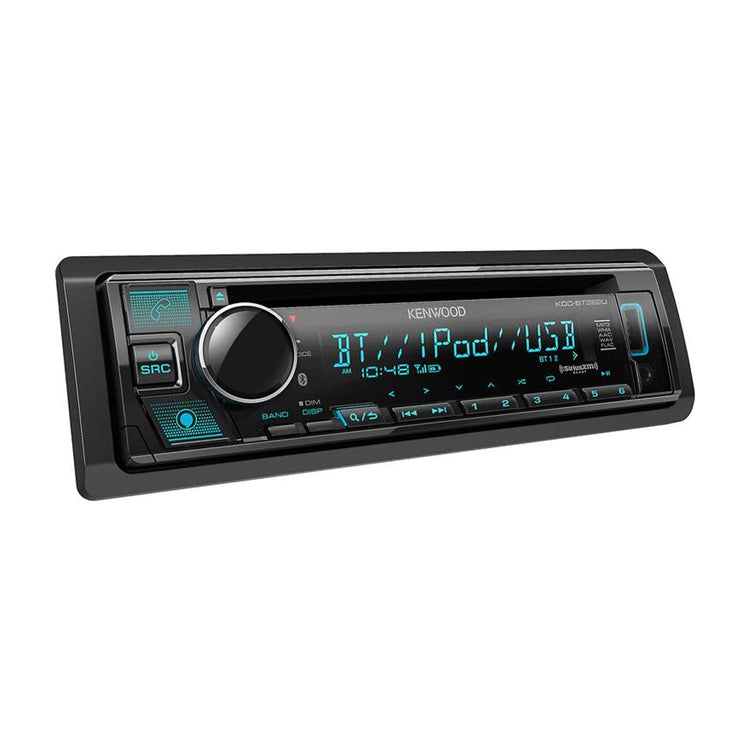

CD receiver with Bluetooth

. Enjoy convenient control of popular apps like Spotify, built-in Bluetooth for hands-free calling and music streaming, and the ability to use your smartphone as a wireless remote control.

. Sound quality enthusiasts will appreciate the playback support for various types of music formats, including compatibility with FLAC files. Touchscreen sound customization is also available with its built-in 13-band equalizer and digital alignment.

FEATURES

. 255 text 1.5 line text display
. Amazon Alexa ready
. Ready for Spotify
. Bluetooth direct access button
. variable lighting
. Front USB & AUX IN
. 3 pre-outputs 2.5V
. Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming by simply switching devices with your friends or family.
. When connected via Bluetooth, you can switch between phones with the push of a button.
. A smartphone app can control most basic functions of the receiver via the Bluetooth connection of the paired phone (iPhone or Android).
. Search and select songs from your music collection via Bluetooth connection.
. 13-band equalizer and DTA provide optimal enhancements for listeners.
. Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
. Compatible with various audio file formats, from high-resolution FLAC and WAV files to MP3, WMA and AAC formats.
. Quickly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
. Bright variable color LEDs can be adjusted to match any color dash lighting.

SPECIFICATIONS

FM
Frequency range (frequency steps): 87.9 MHz to 107.9 MHz (200 kHz)
Usable sensitivity S/N 30dB: 8.2dBf (0.71?V/75?
Anti-noise sensitivity DIN S/N: 46dB: 17.2dBf (2.0?V/75?
Frequency response (± 3.0dB): 30Hz to 15kHz
S/N: 64.0dB (MONO)
Stereo separation: 40dB (1kHz)

A M
Frequency range (frequency steps): 530kHz to 1700kHz (10kHz)
Usable sensitivity S/N: 20dB: 29dB? (28.2?V)

CD
Laser diode: GaAlAs
Digital Filter (D/A): 8x Oversampling
Spindle speed: 500 to 200 rpm (CLV)
Wow & Flutter: Below the Measurable Limit
Frequency response: 20Hz to 20kHz (± 1dB)
Total harmonic distortion: 0.02% (1 kHz)
S/N ratio (dB): 99dB (1kHz)
Dynamic range: 92dB
Channel separation: 90dB
MP3 Decoding: Compatible with MPEG-1/2 Audio Layer-3
WMA decoding: compatible with WINDOWS MEDIA AUDIO
AAC Decoding: AAC-LC ".aac" files

PREOUT LEVEL (mV) / CHARGE
- Preout Level (?): 2500mV / 10k?

PREOUT IMPEDANCE
Pre-output impedance (?): = <600?

SPEAKER IMPEDANCE
Speaker impedance (?): 4 to 8?

USB I/F
USB: USB 1.1 / 2.0 high speed
File system: FAT12/16/32
Maximum supply current: DC5V (DC logo) 1.5A
MP3 Decoding: Compatible with MPEG-1/2 Audio Layer-3
WMA decoding: compatible with Windows Media Audio
AAC Decoding: ".aac", ".m4a" AAC-LC files
WAV Decoding: Linear PCM
FLAC Decode: FLAC file (up to 24-bit / 96 kHz)

TO
Frequency response: 20Hz to 20kHz ± 3dB

CONTRIBUTION
Maximum input voltage: 1000mV
Input impedance: 30k?

AMP
Maximum power: 50Wx4
Total bandwidth power (at less than 1% THD): 22Wx4

YOUR
Band1: 62.5Hz ± 9dB
Band 2: 100Hz ± 9dB
Band 3: 160Hz ± 9dB
Band 4: 250Hz ± 9dB
Band 5: 400Hz ± 9dB
Band 6: 630Hz ± 9dB
Band 7: 1kHz ± 9dB
Band 8: 1.6 kHz ± 9dB
Band 9: 2.5kHz ± 9dB
Band 10; 4 kHz ± 9dB
Band 11: 6.3kHz ± 9dB
Band 12: 10kHz ± 9dB
Band 13: 16kHz ± 9dB

BLUETOOTH
Version: Bluetooth 4.2
Frequency range: 2.402 to 2.480GHz
RF Output Power (EIRP): +4 dBm (MAX), Power Class 2
Maximum communication range: Line of sight approximately 10 m (32.8 ft)
Profile:
HFP 1.7.1 (Hands-Free Profile)
SPP (Serial Port Profile)
PBAP (Directory Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP 1.6.1 (Audio/Video Remote Control Profile)

GENERAL
Working voltage: 12V DC car battery
Installation size (W) (H) (D): 182 (mm) 7-3/16 (in) 53 (mm) 2-1/16 (in) 155.5 (mm) 6-1/8 (in)
Net weight (trim plate and mounting sleeve: included): 1.2 (kg) 2.7 (lb)
