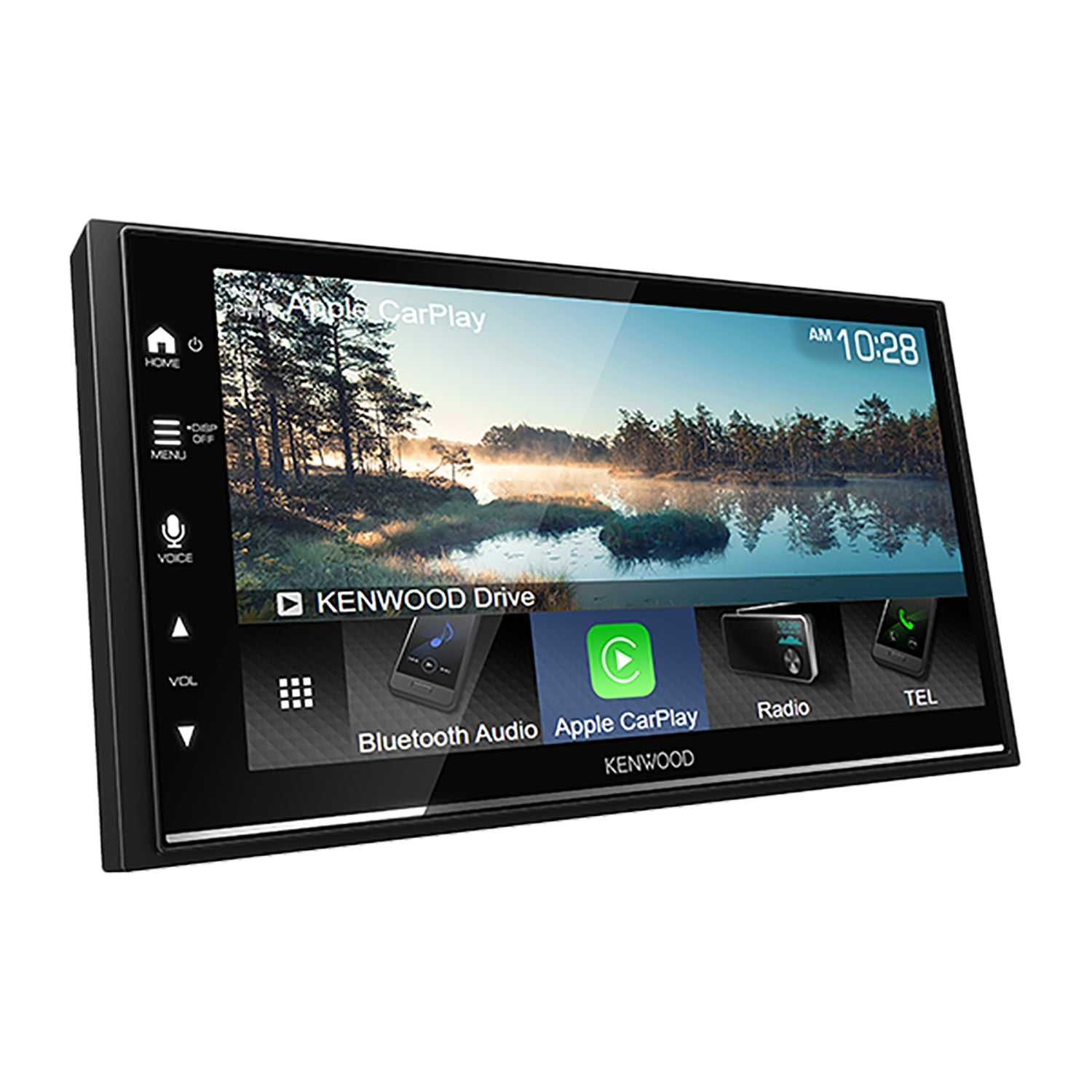

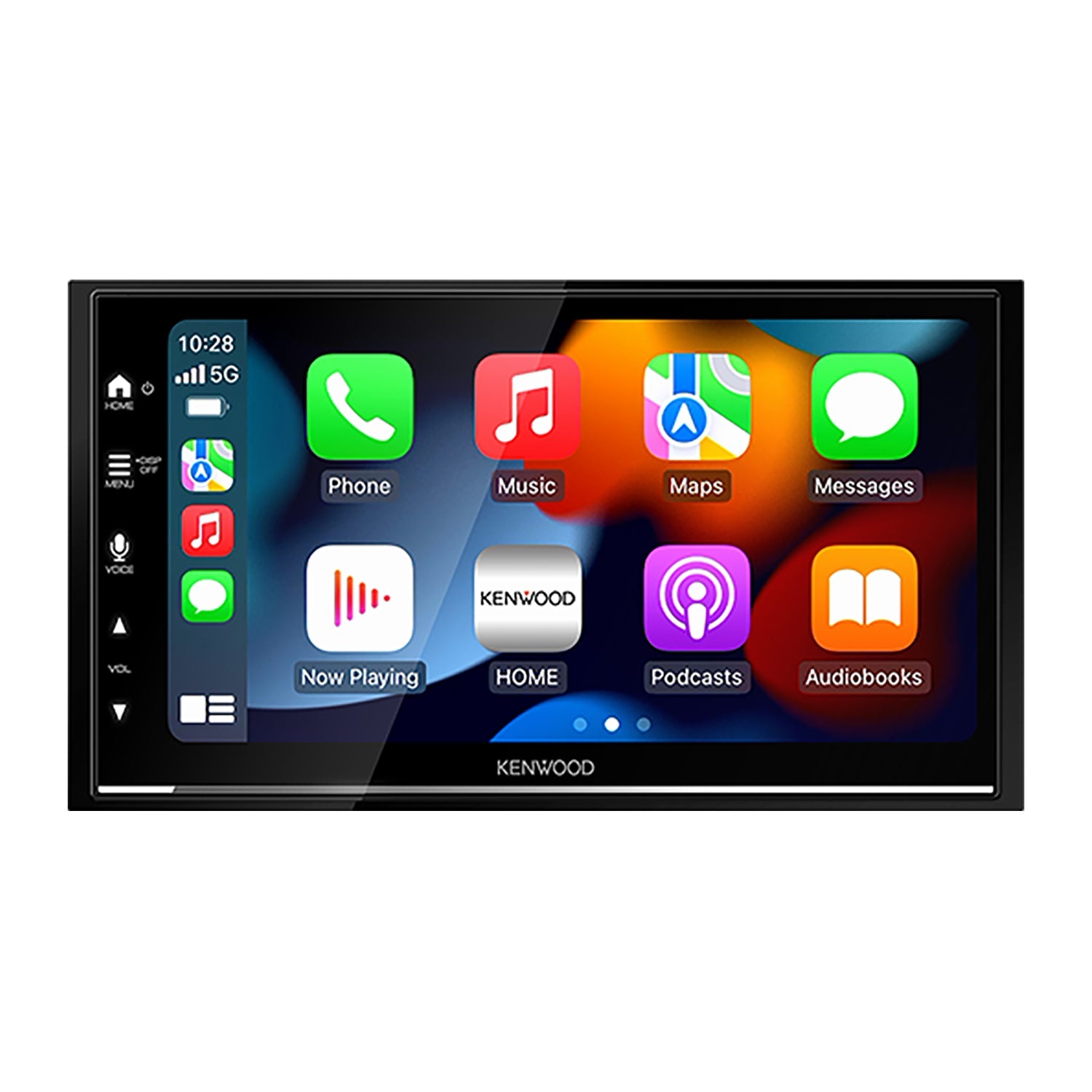

Discover the Kenwood Digital Car Multimedia Receiver, featuring a 6.8" capacitive touchscreen. Easily control the picture and features by swiping on the transparent glass screen. Android USB mirroring offers seamless integration of smartphone apps. With 3 camera inputs, parking guidelines enhance safety. Enjoy music mixing with up to 5 simultaneously paired Bluetooth devices and dual phone connection. The 13-band graphic equalizer and digital time alignment optimize sound. Variable color lighting adapts to your dashboard, and compatibility with Apple CarPlay and Android Auto provides a safe, connected driving experience.

Features:

• Capacitive Touchscreen: Clear glass screen with swipe functionality that provides superior image and touchscreen control.
• Android USB Mirroring: Solution to seamlessly display and control your smartphone apps on one screen via USB connection on select Android devices.

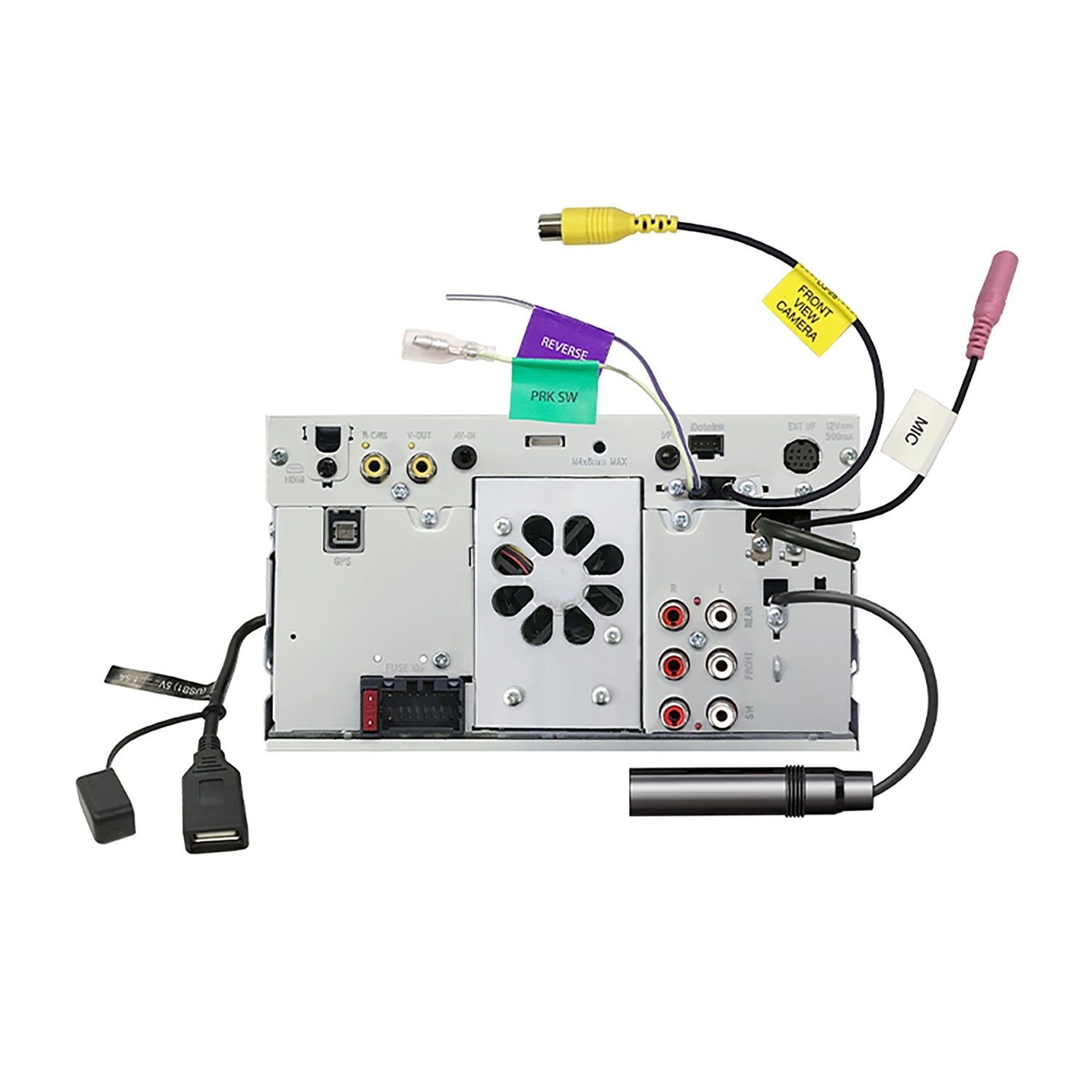

• 3 Camera Inputs: Optional camera connection method for up to 3 cameras in various configurations.
• Parking Guidelines: Parking guide lines (requires installation of a compatible backup camera) that enhance the effectiveness of a backup camera.
• Music Mixing: Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy streaming audio simply by switching devices with your friends or family.
• Dual Phone Connection: When connected via Bluetooth, with just one press of a button, you can switch between two phones.
• Graphic EQ / Digital Time Alignment: 13-band EQ and DTA provide optimal tuning enhancements for listeners.
• Driving Equalizer: Boosts specific frequencies of the audio signal to overcome the negative impact of road noise.
• Variable Color Lighting: Bright, variable color LEDs can be adjusted to match any dashboard lighting color.
• Short Chassis: With shorter receivers than any of our previous models, installation is easier than ever in a wider range of cars.

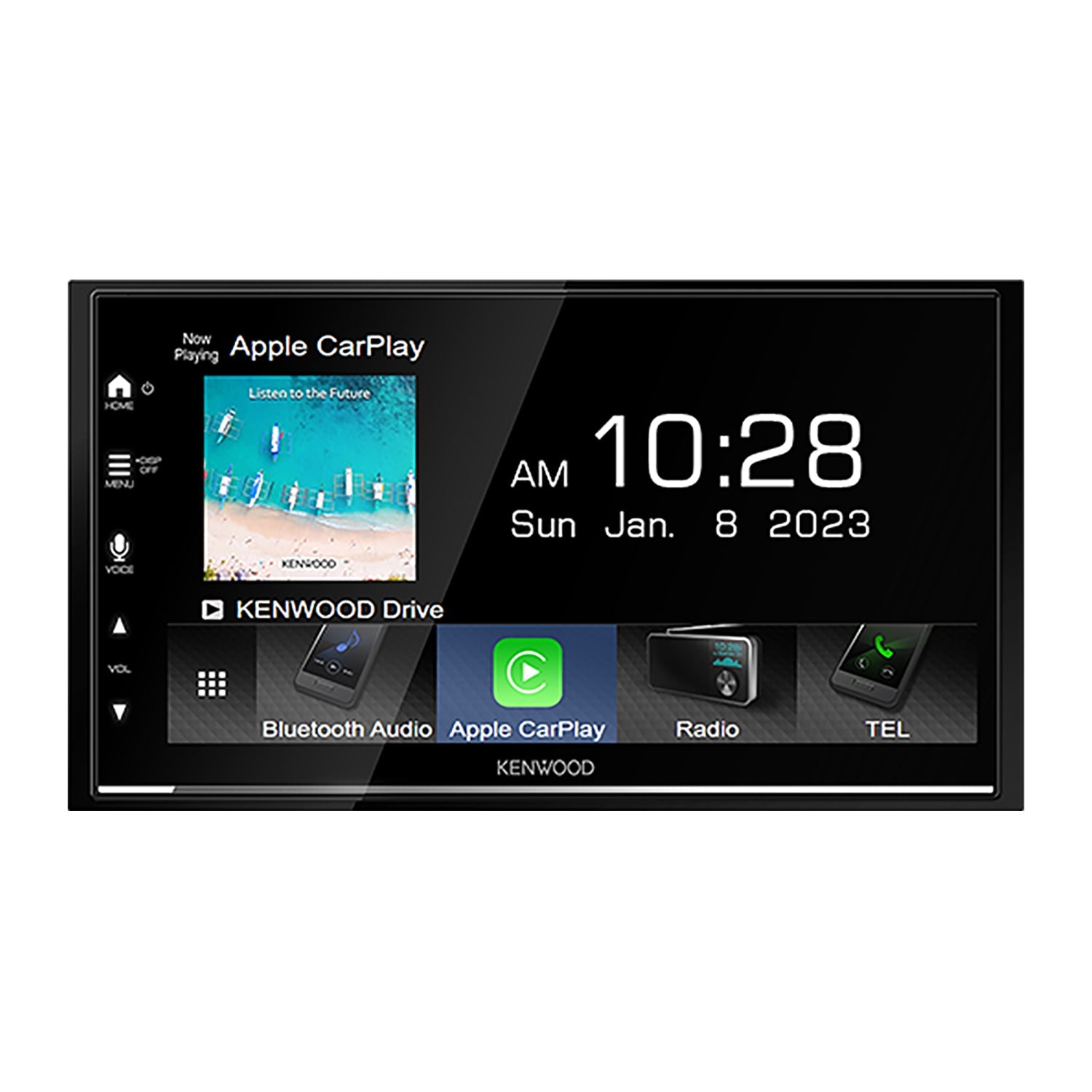

• Compatible with Apple CarPlay: Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's screen to get directions from Apple Maps, make phone calls, listen to voicemails, send and receive text messages, and listen to music from Apple Music

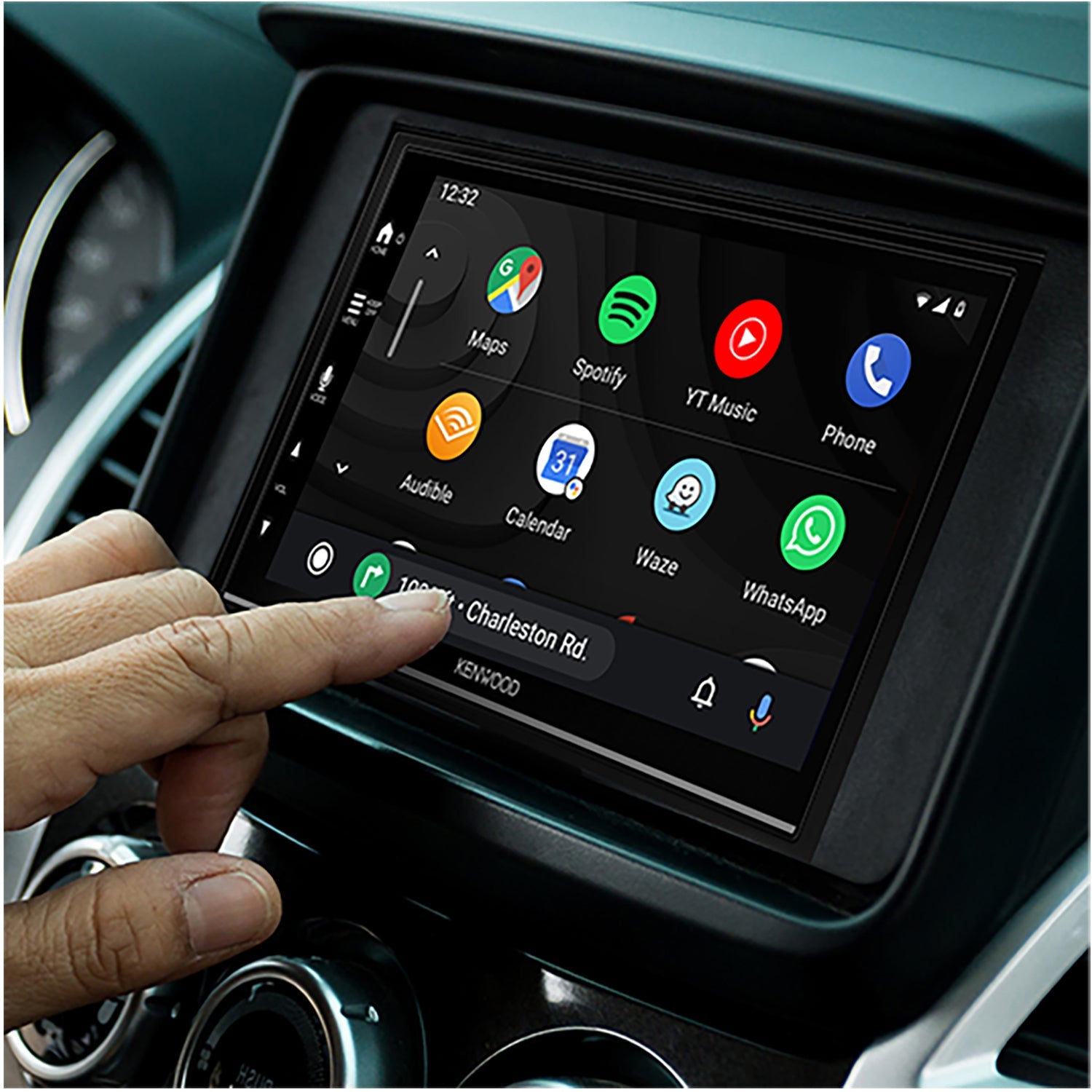

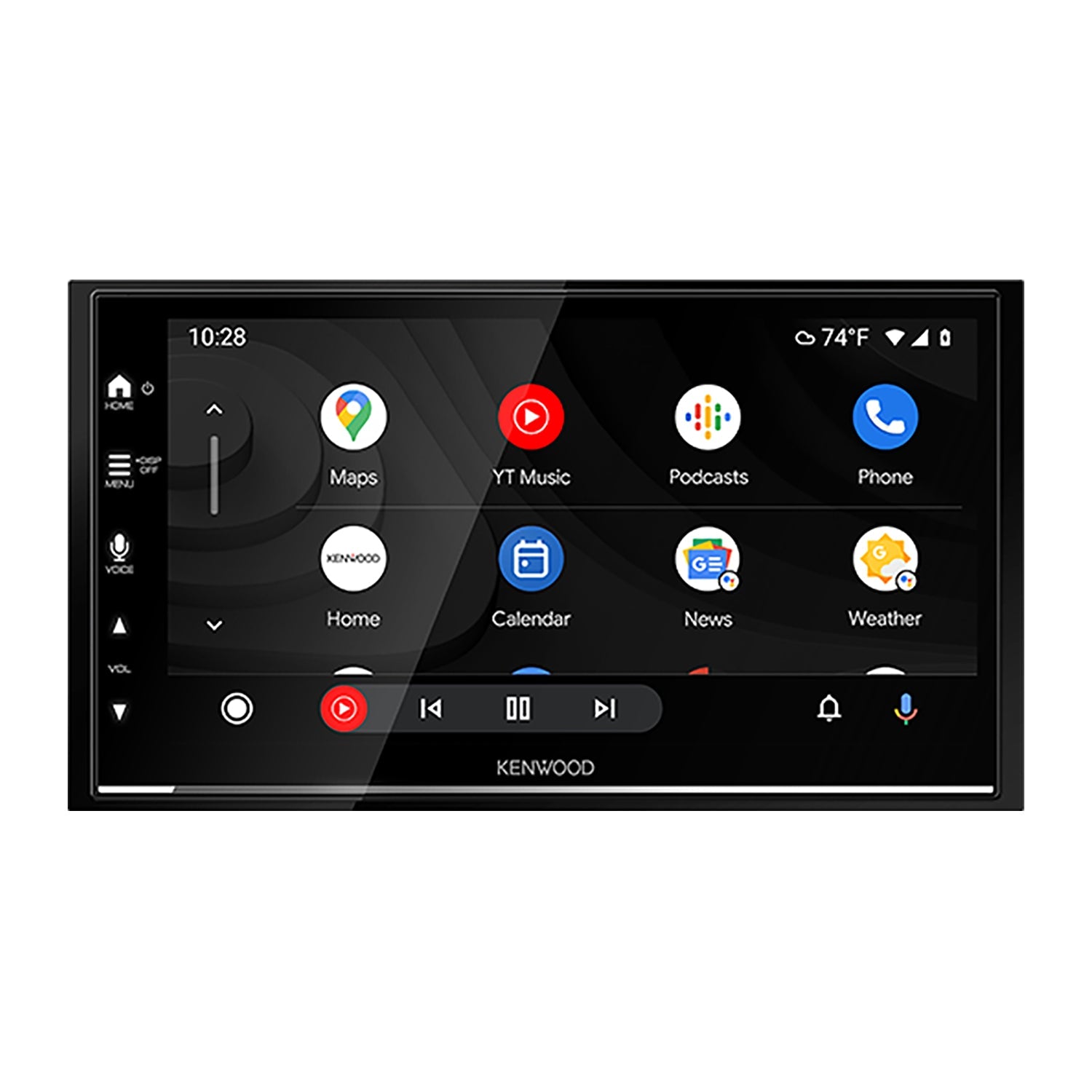

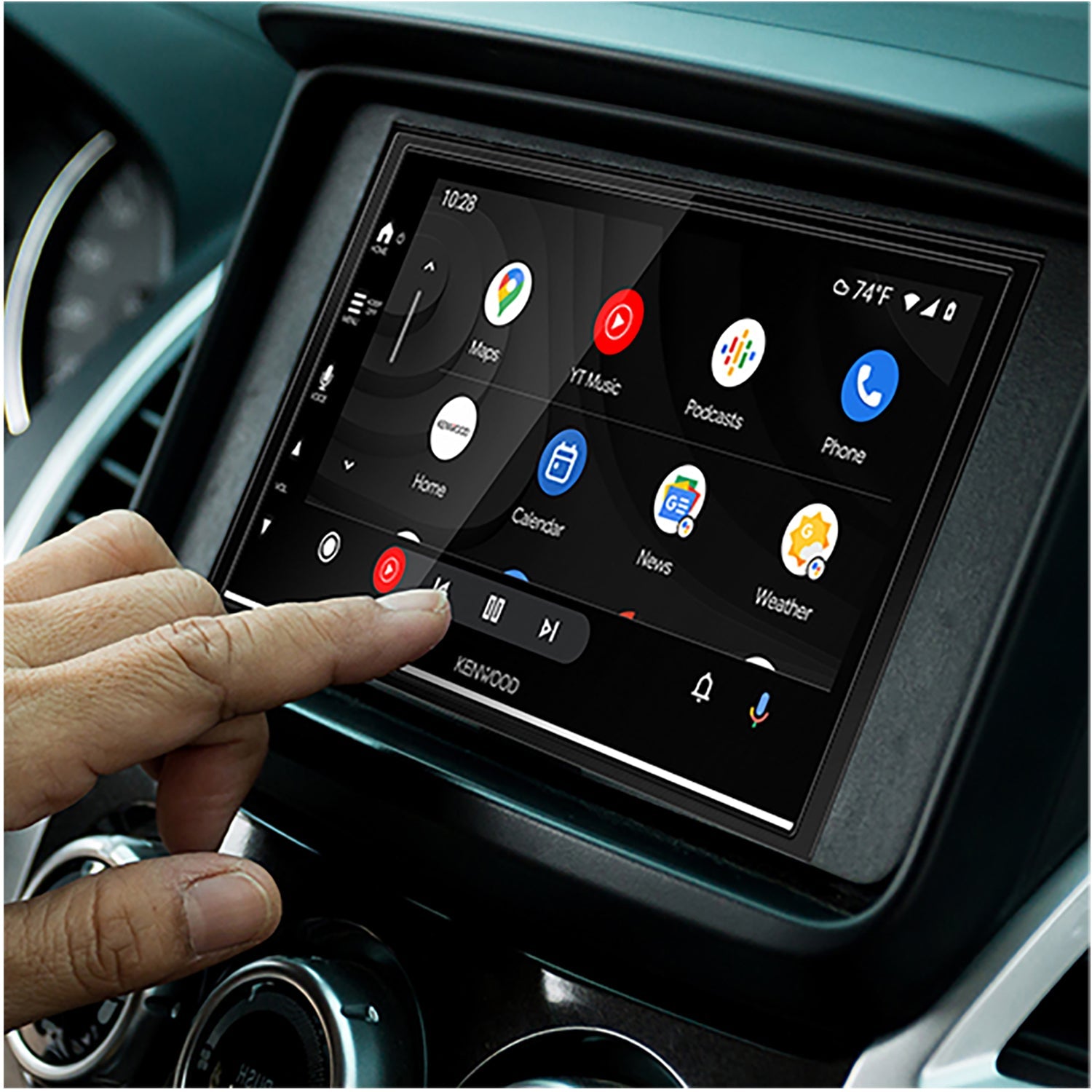

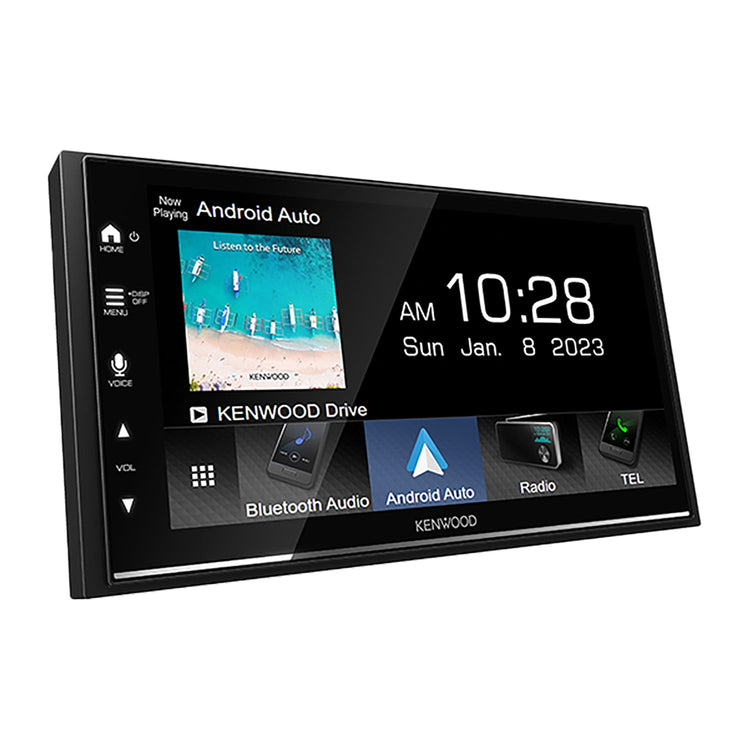

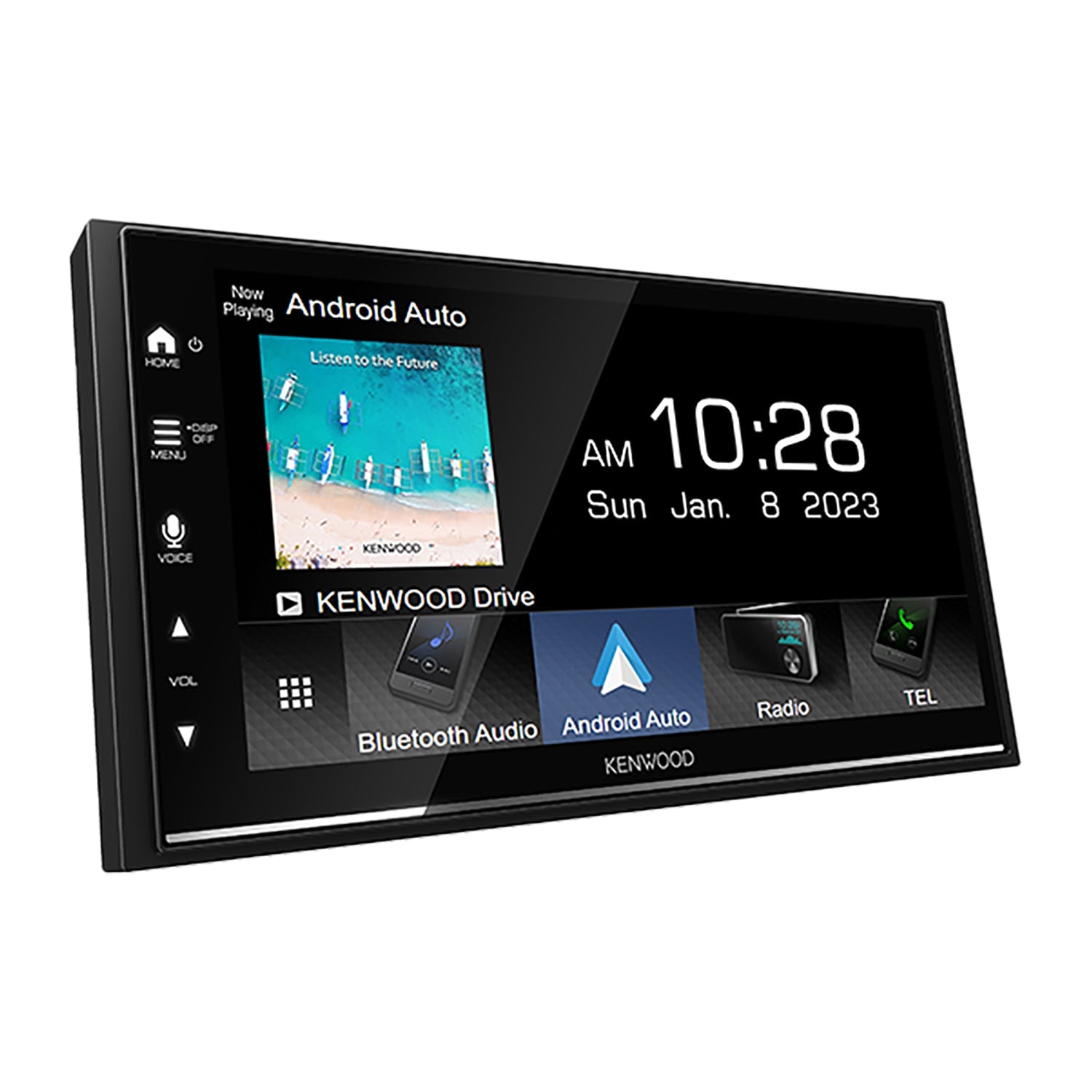

• Compatible with Android Auto: Android Auto is designed with safety in mind, helping you minimize distractions and stay focused on the road. KENWOOD multimedia receivers combine an intuitive voice-activated interface with a large touchscreen and superior sound quality, making them the perfect addition to your in-car life. You can even play and control music from your favorite streaming services like Pandora and Spotify. Navigate wherever you want with Google Maps or Waze.


Specifications:

Monitor

Image Size: 6.75 inches (diagonal) wide
L x H: 151.8 mm x 79.7 mm, 6 x 3-1/7 inches
Display system: TN LCD panel
Driving system: TFT active matrix system
Number of pixels: 1,152,000 (800H x 480V x RGB)
Effective pixels: 99.99%
Pixel Layout: RGB Striped Layout
Backlight: LED

USB I/F

Connector Type: Type A
USB Standard: USB2.0 Full Speed/High Speed
File system: FAT 16/32, exFAT
Maximum supply current: DC5V = 1.5A
D/A converter: 24 bits
Audio Decoder: MP3/WMA/AAC/WAV/FLAC
Video Decoder: MPEG1/2,MPEG4/WMV/H.264/MKV
Frequency Response: 192k Sampling 20 to 20,000 Hz
96k sampling: 20 to 20,000 Hz
48k sampling: 20 to 20,000 Hz
44.1k sampling: 20 to 20,000 Hz
Total harmonic distortion: 1 kHz 0.010%
Signal to noise ratio: 98.5dB
Dynamic range: 89dB

Bluetooth

Technology: Bluetooth version 4.2
Frequency: 2.402 to 2.480 GHz
Maximum communication range: Line of sight approximately 10 m (32.8 ft)
Audio codec: SBC/AAC
Multiple profile support: Multiprofile
Profile: HFP (V1.8) (Hands-Free Profile) / SPP (Serial Port Profile) / A2DP (V1.3.2) (Advanced Audio Distribution Profile) / AVRCP (V1.6.2) (Audio/Video Remote Control Profile) / PBAP (Phonebook Access Profile)

HDMI I/F

Connector Type: Type-D
Input Resolution: VGA (640 x 480p @ 59.94Hz/60Hz) / 480p (720x480p @ 59.94Hz/60Hz)
Input Audio Type: Linear PCM 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24bit

Audio

Maximum output power (front and rear): 50Wx4
Typical output power (front and rear): Full bandwidth power (at less than 1%THD) 22Wx4
Output frequency band: 20 to 88,000 Hz
Pre-output level (V): 4V / 10kOhms
Pre-output impedance (Ω): =< 600 Ohm
Speaker Impedance (Ω): 4 to 8 Ohms

General

Working voltage Car battery: 12V DC
Installation dimensions WxHxD: 180mm x 100mm x 75mm
(Main Unit Installation Size): 7-1/16. x 3-15/16 x 2-15/16 inches
(with handle): 182 mm x 111 mm x 74 mm, 7-3/16 x 4-3/8 x 2-15/16 inches

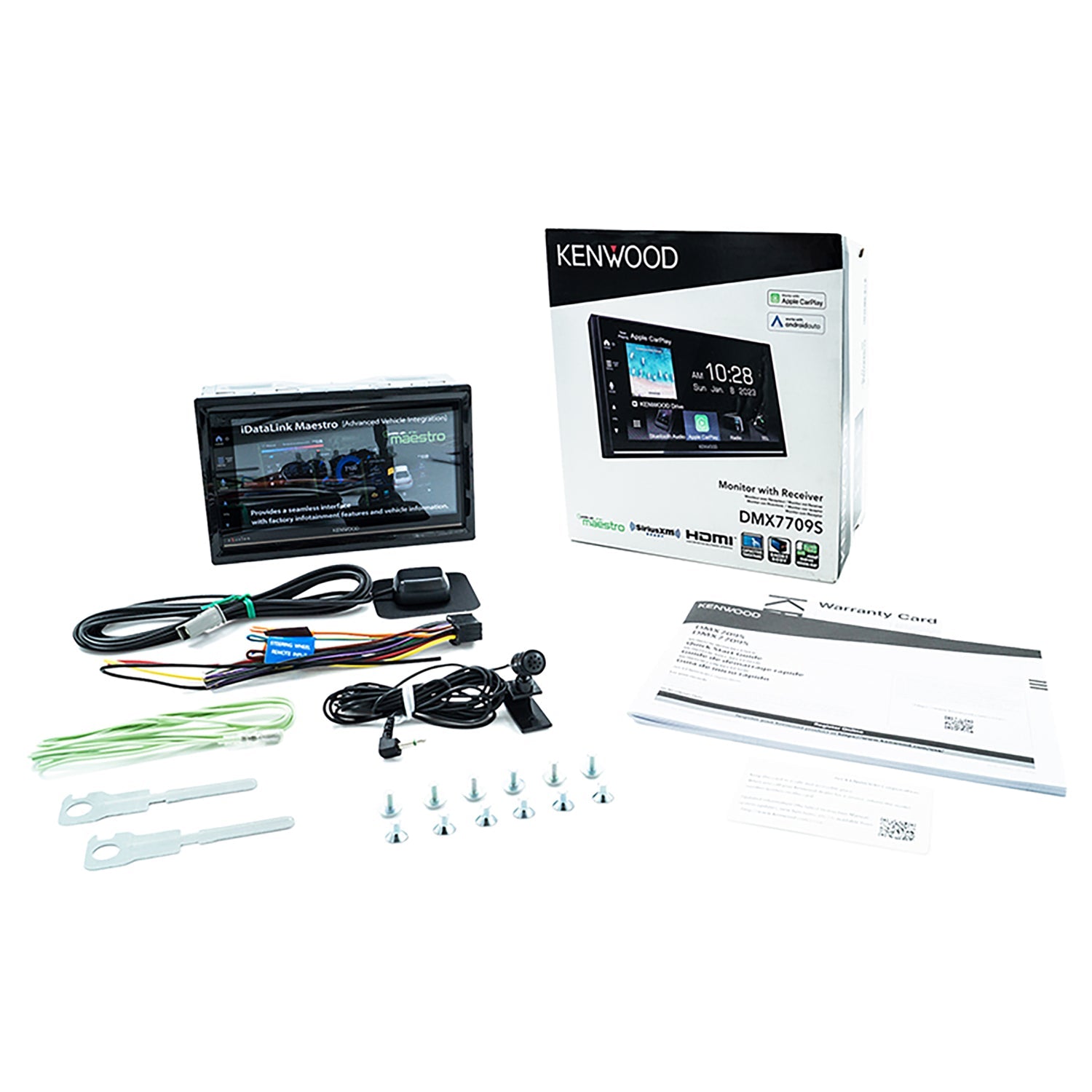

Weight Main unit 1.2kg (2.7 lbs) (Trim plate and mounting sleeve: included)
